Radar Chart

A Radar chart is used to display circular visual representation of a 2-dimensional data. One can think of it as a circular XY chart. These charts represent each variable on a separate axis, which are arranged radially at equal distances from each other. Each of these axes share the same tick marks and scale. The data for each observation is plotted along these axis and then joined to form a polygon. Radar charts are generally used for analyzing performance or comparing values such as revenue and expense.

DsExcel supports the following types of radar charts.

Chart Type

Chart Snapshot

Use Case

Radar

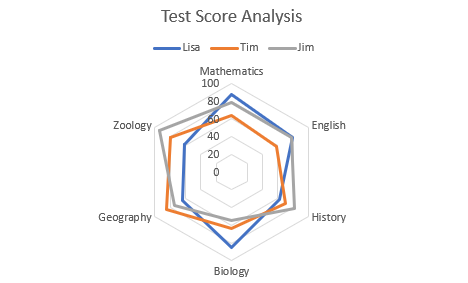

Radar chart

Radar chart

Radar chart type can be used to represent multivariate data plotted in rows and columns in the graphical format.

RadarFilled

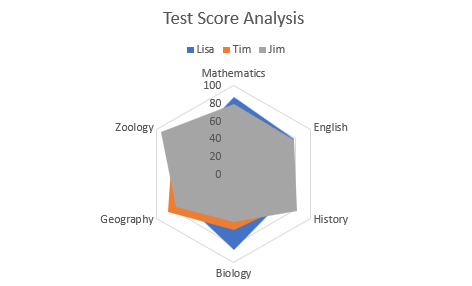

RadarFilled chart

RadarFilled chart

RadarFilled chart type can be used to display radar chart with areas highlighted by different colored regions for each value.

RadarMarkers

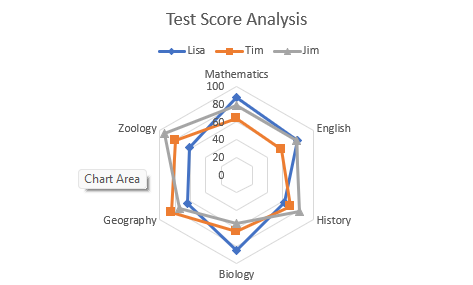

RadarMarkers chart

RadarMarkers chart

RadarMarkers chart can be used to display radar chart with markers representing data for each value along with areas highlighted by different line colors.

Using Code

Refer to the following code to add RadarMarkers chart:

public void RadarCharts() {
  // Initialize workbook
  Workbook workbook = new Workbook();
  // Fetch default worksheet
  IWorksheet worksheet = workbook.Worksheets[0];

  // Prepare data for chart
  worksheet.Range["A1:D7"].Value = new object[,] {
    { null, "Lisa", "Tim", "Jim" }, { "Mathematics", 87, 64, 79 },
    { "English", 79, 58, 78 },      { "History", 62, 70, 82 },
    { "Biology", 85, 63, 54 },      { "Geography", 64, 85, 75 },
    { "Zoology", 62, 79, 94 }
  };
  worksheet.Range["A:D"].Columns.AutoFit();
  // Add Radar Chart
  IShape radarChartShape =
      worksheet.Shapes.AddChart(ChartType.RadarMarkers, 250, 20, 360, 230);

  // Adding series to SeriesCollection
  radarChartShape.Chart.SeriesCollection.Add(worksheet.Range["A1:D7"],
                                             RowCol.Columns, true, true);

  // Configure Chart Title
  radarChartShape.Chart.ChartTitle.TextFrame.TextRange.Paragraphs.Add(
      "Test Score Analysis");

  // Saving workbook to Xlsx
  workbook.Save(@"27-RadarChart.xlsx", SaveFileFormat.Xlsx);
}
