Customize Appearance

In This Topic

Xamarin Edition controls match the native controls on all three platforms by default and are designed to work with both: light and dark themes available on all platforms. But, there are several properties available that let you customize the gauge elements to make it visually attractive. The following code example demonstrates how to set different styling properties to customize a RadialGauge.

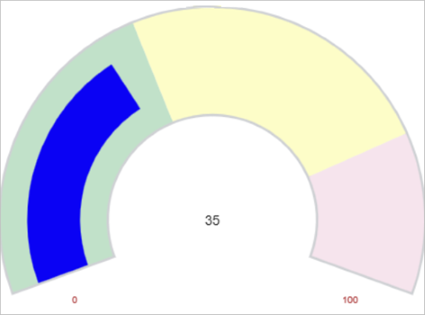

The following image shows how the RadialGauge appears after its appearance is customized.

The following code example demonstrates how to customize the appearance of a radial gauge in C#. This example uses the sample created in the Quick start.

In Code

C#	Copy Code
//Customize Gauge gauge.ShowText = GaugeShowText.All; gauge.Thickness = 0.5; gauge.FaceBorderColor = Color.FromHex("#cfd1d4"); gauge.FaceBorderWidth = 5; gauge.MinTextColor = Color.Brown; gauge.MaxTextColor = Color.Brown; gauge.MinFontSize = 10; gauge.MaxFontSize = 10; //Customize Range Appearance low.Color = Color.FromHex("#C1E1C9"); med.Color = Color.FromHex("#fdfdc8"); high.Color = Color.FromHex("#f6e4ed"); //Customize Pointer Appearance gauge.Pointer.Thickness = 0.5;

Copy Code

//Customize Gauge
gauge.ShowText = GaugeShowText.All;
gauge.Thickness = 0.5;
gauge.FaceBorderColor = Color.FromHex("#cfd1d4");
gauge.FaceBorderWidth = 5;

gauge.MinTextColor = Color.Brown;
gauge.MaxTextColor = Color.Brown;
gauge.MinFontSize = 10;
gauge.MaxFontSize = 10;

//Customize Range Appearance
low.Color = Color.FromHex("#C1E1C9");
med.Color = Color.FromHex("#fdfdc8");
high.Color = Color.FromHex("#f6e4ed");

//Customize Pointer Appearance
gauge.Pointer.Thickness = 0.5;

In XAML

XAML	Copy Code
<c1:C1RadialGauge Min="0" Max="100" Value="35" StartAngle = "-20" SweepAngle = "220" AutoScale = "true" FaceBorderColor="#cfd1d4" FaceBorderWidth="5" MinTextColor="Brown" MaxTextColor="Brown" > <c1:C1RadialGauge.Ranges> <c1:GaugeRange Min="0" Max="40" Color="#C1E1C9"/> <c1:GaugeRange Min="40" Max="80" Color="#fdfdc8"/> <c1:GaugeRange Min="80" Max="100" Color="#f6e4ed"/> </c1:C1RadialGauge.Ranges> <c1:C1RadialGauge.Pointer> <c1:GaugeRange Thickness="0.5"></c1:GaugeRange> </c1:C1RadialGauge.Pointer> </c1:C1RadialGauge>

XAML

Copy Code

<c1:C1RadialGauge Min="0" Max="100" Value="35" StartAngle = "-20" SweepAngle = "220" AutoScale = "true"
    FaceBorderColor="#cfd1d4" FaceBorderWidth="5" MinTextColor="Brown" MaxTextColor="Brown" >
    <c1:C1RadialGauge.Ranges>
        <c1:GaugeRange  Min="0" Max="40" Color="#C1E1C9"/>
        <c1:GaugeRange Min="40" Max="80" Color="#fdfdc8"/>
        <c1:GaugeRange Min="80" Max="100" Color="#f6e4ed"/>
    </c1:C1RadialGauge.Ranges>
    <c1:C1RadialGauge.Pointer>
        <c1:GaugeRange Thickness="0.5"></c1:GaugeRange>
    </c1:C1RadialGauge.Pointer>
</c1:C1RadialGauge>
