Rotating Text

You might want to display text in a cell at a particular angle for optimal display. You can rotate the text at different angles in C1FlexSheet to display text at a certain angle. To rotate text in a cell, use C1FlexSheet.SetCellAngle method.

To provide option to rotate cell data at a certain angle, follow the given steps:

1. Add the following code to your application to add a ComboBox and set its properties:


   <ComboBox x:Name="cmbRotate" SelectedIndex="0" Margin="3"
         ToolTipService.ToolTip="Text Rotate" SelectionChanged="cmbRotate_SelectionChanged">
       <ComboBox.Items>
           <ComboBoxItem Content="0 degree" />
           <ComboBoxItem Content="45 degree" />
           <ComboBoxItem Content="90 degree" />
           <ComboBoxItem Content="135 degree" />
           <ComboBoxItem Content="180 degree" />
       </ComboBox.Items>
   </ComboBox>


2. Add the following code to the SelectedChanged event of the ComboBox to rotate text of the selected cells using SetCellAngle method:
   vbnet

   Dim index = DirectCast(sender, ComboBox).SelectedIndex
   Dim angle As Double = 0
   Select Case index
           Case 0
                   angle = 0
                   Exit Select
           Case 1
                   angle = 45
                   Exit Select
           Case 2
                   angle = 90
                   Exit Select
           Case 3
                   angle = 135
                   Exit Select
           Case 4
                   angle = 180
                   Exit Select
           Case Else
                   angle = 0
                   Exit Select
   End Select
   If flex IsNot Nothing Then
           flex.SetCellAngle(flex.Selection.Cells, angle, 8)
   End If


   csharp

   var index = ((ComboBox)sender).SelectedIndex;
   double angle = 0;
   switch (index)
   {
       case 0:
           angle = 0;
           break;
       case 1:
           angle = 45;
           break;
       case 2:
           angle = 90;
           break;
       case 3:
           angle = 135;
           break;
       case 4:
           angle = 180;
           break;
       default:
           angle = 0;
           break;
   }
   if (flex != null)
       flex.SetCellAngle(flex.Selection.Cells, angle, 8);


The given code allows you to rotate the cell data at 45, 90, 135, and 180 degree angles. You can customize the code and add the angle at which you want your data to be displayed.

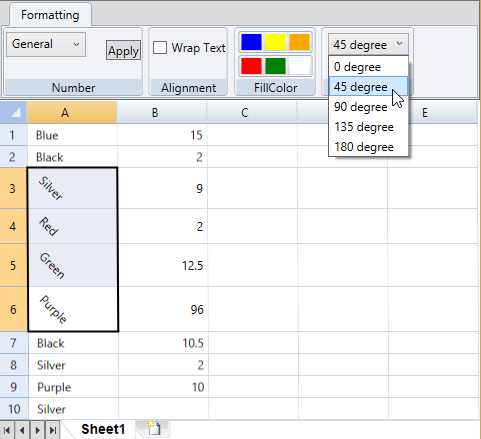

On selecting an angle to rotate text, say 45 degree angle, the output appears similar to the following:
