WPF Exploded Pie Chart

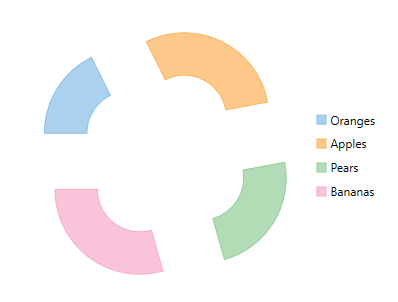

The Offset property can be used to push the pie slices away from the center of FlexPie, producing the exploded Pie Chart. This property accepts a double value to determine how far the pie slices should be pushed from the center.

Here is the code snippet:

xml

<Grid>
    <Chart:C1FlexPie
        x:Name="flexPie"
        InnerRadius="0.5"
        Offset="0.5"
        Header="Fruit Sales Data"
        Footer="2015"
        LegendOrientation="Horizontal"
        LegendPosition="Bottom"
        SelectionMode="Point"
        SelectedItemPosition="Top"
        SelectedItemOffset="2"
        Margin="95,99,328,275"
        Binding="April"
        BindingName="Fruit"
        ItemsSource="{Binding DataContext.Data}">
        <Chart:C1FlexPie.SelectionStyle>
            <Chart:ChartStyle Stroke="Red"
                              StrokeThickness="2"/>
        </Chart:C1FlexPie.SelectionStyle>
        <Chart:C1FlexPie.DataLabel>
            <Chart:PieDataLabel Content="{}{y}"/>
        </Chart:C1FlexPie.DataLabel>
    </Chart:C1FlexPie>
</Grid>

Code

flexPie.Offset = 0.5;
