Custom Filter

The DataFilter control allows you to create custom filters which can replace the default filter editors at runtime. It provides CustomFilter class which needs to be inherited for defining a custom filter. Inheriting the CustomFilter class provides access to its properties and methods which can further be used to create a custom filter in .NET and .NET Framework editions.

.NET Framework

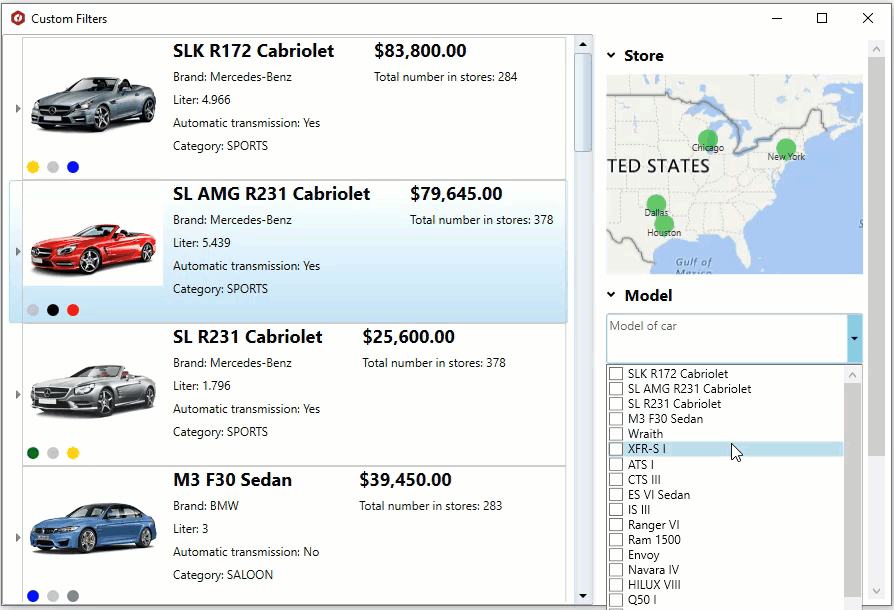

The application depicts customized filtering of card models.

Following example shows how you can create and add custom filter to the DataFilter control. It demonstrates how you can filter the car models using the MultiSelect control as a part of the DataFilter control UI.

Define a custom filter by creating a new class which inherits the CustomFilter class. In the class constructor, use Control property of the CustomFilter class to specify the custom control that you want to use to perform filtering in the DataFilter control.

vbnet

Public Sub New()
    _modelFilterPresenter = New ModelFilterPresenter()
    Control = _modelFilterPresenter
    AddHandler _modelFilterPresenter.SelectedChanged, AddressOf OnValueChanged
End Sub

csharp

public ModelFilter()
{
    Control = _modelFilterPresenter = new ModelFilterPresenter();
    _modelFilterPresenter.SelectedChanged += (s, e) => OnValueChanged();
}

Bind the MultiSelect control with data. In this example, we are binding the control with data using the SetTagList method.

vbnet

Public Sub SetTagList(ByVal itemSource As IEnumerable(Of Car))
    _modelFilterPresenter.SetTagList(itemSource)
End Sub

csharp

public void SetTagList(IEnumerable<Car> itemSource)
{
    _modelFilterPresenter.SetTagList(itemSource);
}

Raise the SelectionChanged event of the MultiSelect control. This notifies the DataFilter control about the change in filter values.

vbnet

Private Sub MultiSelect_SelectionChanged(ByVal sender As Object, ByVal e As EventArgs)
    SelectedChangedEvent?.Invoke(Me, e)
End Sub
Public Sub SetTagList(ByVal itemSource As IEnumerable(Of Car))
    For Each item As C1MultiSelect In Items
        RemoveHandler item.SelectionChanged, AddressOf MultiSelect_SelectionChanged
    Next item
    Items.Clear()
    Dim ms = New C1MultiSelect With {
        .Height = 50,
        .PlaceHolder = "Model of car",
        .ItemsSource = itemSource,
        .DisplayMemberPath = "Model",
        .SelectedValuePath = "Model",
        .AutoCompleteMode = AutoCompleteMode.SuggestAppend
    }
    AddHandler ms.SelectionChanged, AddressOf MultiSelect_SelectionChanged
    Items.Add(ms)
End Sub

csharp

private void MultiSelect_SelectionChanged(object sender, EventArgs e) => SelectedChanged?.Invoke(this, e);
public void SetTagList(IEnumerable<Car> itemSource)
{
    foreach (C1MultiSelect item in Items)
    {
        item.SelectionChanged -= MultiSelect_SelectionChanged;
    }
    Items.Clear();
    var ms = new C1MultiSelect
    {
        Height = 50,
        PlaceHolder = "Model of car",
        ItemsSource = itemSource,
        DisplayMemberPath = "Model",
        SelectedValuePath = "Model",
        AutoCompleteMode = AutoCompleteMode.SuggestAppend
    };
    ms.SelectionChanged += MultiSelect_SelectionChanged;
    Items.Add(ms);
}

Implement the GetExpression abstract method of the CustomFilter class to create and return the filter expression which is to be used to filter the values in the data aware control.

vbnet

Protected Overrides Function GetExpression() As Expression
    Dim tags = _modelFilterPresenter.GetSelectedTagList()
    Dim expr = New CombinationExpression() With {.FilterCombination = FilterCombination.Or}
    For Each tag In tags
        expr.Expressions.Add(New OperationExpression() With {
            .Value = tag,
            .FilterOperation = FilterOperation.Equal,
            .PropertyName = PropertyName
        })
    Next tag
    Return expr
End Function

csharp

protected override Expression GetExpression()
{
    var tags = _modelFilterPresenter.GetSelectedTagList();
    var expr = new CombinationExpression() { FilterCombination = FilterCombination.Or };
    foreach (var tag in tags)
    {
        expr.Expressions.Add(new OperationExpression() { Value = tag, FilterOperation = FilterOperation.Equal, PropertyName = PropertyName });
    }
    return expr;
}

Add the created custom filter, ModelFilter, to the DataFilter control to filter the car models shown in the FlexGrid control.

vbnet

Dim _carsTable As DataTable
Dim _dataProvider As New DataProvider()
Dim _data As IEnumerable(Of car)
Sub New()
    ' This call is required by the designer.
    InitializeComponent()
    _carsTable = _dataProvider.GetCarTable()
    Dim Data = New C1DataCollection(Of car)(_dataProvider.GetCarDataCollection(_carsTable))
    grid.ItemsSource = Data
    c1DataFilter.ItemsSource = Data
    Dim mdf = New ModelFilter()
    mdf.HeaderText = "Model"
    mdf.PropertyName = "Model"
    mdf.SetTagList(_dataProvider.GetCarDataCollection(_carsTable))
    c1DataFilter.Filters.Add(mdf)
End Sub
Private Sub c1DataFilter_FilterChanged(sender As Object, e As EventArgs)
    grid.ItemsSource = c1DataFilter.View.Cast(Of car)().ToList()
End Sub

csharp

private DataProvider _dataProvider = new DataProvider();
private IEnumerable<CountInStore> _data;
public CustomFiltersSample()
{
    InitializeComponent();
    _data = _dataProvider.GetCarsInStores().ToList();
    c1DataFilter.ItemsSource = _data;
    UpdateTreeViewData(_data);
    InitFilters();
}
private void InitFilters()
{
    //Model filter
    var mdf = new ModelFilter()
    {
        HeaderText = "Model",
        PropertyName = "Car.Model"
    };
    mdf.SetTagList(_data.GroupBy(x => x.Car).Select(g => g.Key));
    c1DataFilter.Filters.Add(mdf);
}
private void c1DataFilter_FilterChanged(object sender, System.EventArgs e)
{
    UpdateTreeViewData(c1DataFilter.View.Cast<CountInStore>());
}
private void UpdateTreeViewData(IEnumerable<CountInStore> data)
{
    treeView.ItemsSource = data.GroupBy(x => x.Car).Select(g => new CarStoreGroup { Car = g.Key, CountInStores = g.ToList() });
}

Similarly, you can create any other custom filter.

.NET

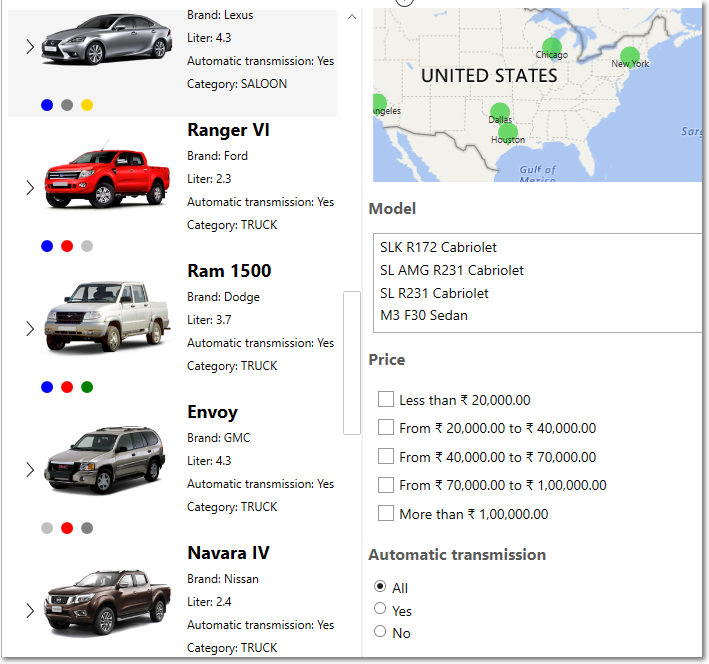

In DataFilter .NET version, there is an additional approach to the style the filters using ItemContainerStyle property of C1DataFilter class. The property allows setting the style of the expander where you can make it non-expandable, hide the icon, border, change the font, and more as shown in the image below.

The above example can be created using the following XAML code for .NET verion.

<c1:C1DataFilter x:Name="c1DataFilter" Grid.Column="2" AutoGenerateFilters="False" FilterChanged="c1DataFilter_FilterChanged" FontFamily="Segoe UI">
    <c1:C1DataFilter.ItemContainerStyle>
        <Style TargetType="c1:C1Expander" BasedOn="{StaticResource {x:Type c1:C1Expander}}">
            <Setter Property="IsExpanded" Value="True"/>
            <Setter Property="IsExpandable" Value="False"/>
            <Setter Property="ExpandIconStyle">
                <Setter.Value>
                    <Style TargetType="ContentControl">
                        <Setter Property="Visibility" Value="Collapsed"/>
                    </Style>
                </Setter.Value>
            </Setter>
            <Setter Property="BorderThickness" Value="0"/>
            <Setter Property="HeaderStyle">
                <Setter.Value>
                    <Style TargetType="c1:ExpanderButton">
                        <Setter Property="FontWeight" Value="Bold"/>
                        <Setter Property="FontSize" Value="16"/>
                    </Style>
                </Setter.Value>
            </Setter>
        </Style>
    </c1:C1DataFilter.ItemContainerStyle>
</c1:C1DataFilter>
