WrapPanel Quick Start

The following quick start guide is intended to get you up and running with WrapPanel for WPF. In this quick start, you'll create a new project in Visual Studio, add styled HyperlinkButtons that can be wrapped, and change the orientation for the buttons.

Step 1

To set up your project, complete the following steps:

1. In Visual Studio, select File | New Project.

2. In the New Project dialog box, select Windows Desktop from the Templates in the left-hand pane.










   New Project Dialog

3. Select WPF Application.

4. Enter a Name for your project, for example "QuickStart", and click OK. In a WPF Application, the MainWindow.xaml file will open.

5. Add the following assemblies to your application by right-clicking the References folder and selecting Add Reference:

   • WPF: C1.WPF.4.dll

In the next step, you'll add, style, and wrap several HyperlinkButtons.

Step 2

We're going to use simple HyperlinkButtons to show how content can be wrapped vertically or horizontally. This is the typical scenario to create a TagCloud view; very commonly used in Web applications.

1. First, remove the Grid tags from your project.

2. From the Visual Studio Toolbox, drag a C1WrapPanel control to the page.

3. Place your cursor in between the <c1:C1WrapPanel> tags and add the HyperlinkButtons using the following XAML:

<HyperlinkButton Content="Example Text" FontSize="25" />
<HyperlinkButton Content="Longer sentences can be used for wrapping scenarios." />
<HyperlinkButton Content="Let's insert a break." />
<HyperlinkButton c1:C1WrapPanel.BreakLine="After" Content="Break After" />
<HyperlinkButton Content="C1WrapPanel" />
<HyperlinkButton Content="Wrap Vertically" />
<HyperlinkButton Content="Wrap Horizontally" FontSize="20"  />
<HyperlinkButton c1:C1WrapPanel.BreakLine="Before" Content="Break Before" />
<HyperlinkButton Content="Controls" FontSize="8" />
<HyperlinkButton Content="Components" FontSize="18" />
<HyperlinkButton c1:C1WrapPanel.BreakLine="AfterAndBefore" Content="Break After and Before" />
<HyperlinkButton Content="Create flow type layouts that wrap content vertically or horizontally." />
<HyperlinkButton Content="Small font size is not recommended." FontSize="6" />
<HyperlinkButton Content="The End" FontSize="24" />

In the next step, you'll run the application.

Step 3

Now you're ready to run the application. Complete the following steps:

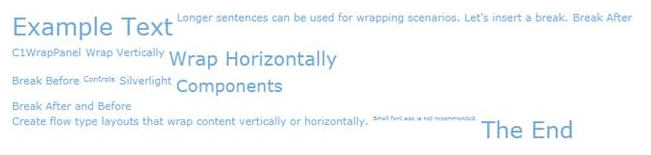

1. From the Debug menu, select Start Debugging. Your application will look similar to the following:


2. Click the Stop Debugging button to close the application.

3. Go back to MainPage.xaml. In the <c1:C1WrapPanel> tag, set the Orientation property to Vertical; the XAML will look like the following:

<c1:C1WrapPanel Orientation="Vertical">

4. Click Start Debugging again in the Debug menu. Your application will now look like this:

Notice how the buttons are stacked vertically.

Congratulations! You have successfully completed the WrapPanel for WPF quick start.
