Title Node

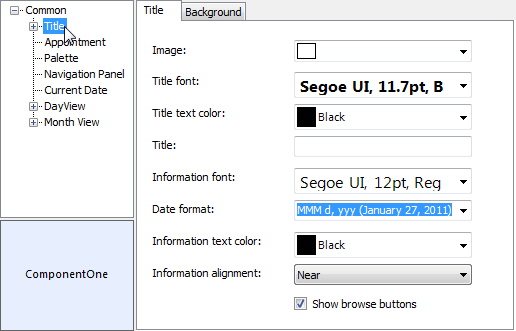

Through the Title node of the Visual Style dialog box, you can set the font and text properties for the title.


Title Node


The following properties are available through the Title node:

Group

Property

Description

Title


Sets the image for the title.

Title font

Sets the font for the title.

Title text color

Sets the text color for title bar.

Title

Sets the text that will appear in the title bar.

Information font

Sets the font for the date in the title bar.

Date format

Sets the format of the date in the title bar. Available formats include:

  • d - Displays the numeric date value. For example, 1/9/2007.

  • MMMM d, yyy - Displays the full name of the month, the numeric date value, and the year. For example, January 9, 2007.

  • yyy, MMMM d - Displays the year, the full name of the month and the numeric date value. For example, 2007, January 9.

  • yyy, d MMMM - Displays the year, the numeric date value and the full name of the month. For example, 2007, 9 January.

  • d MMMM, yyy - Displays the date value, the full name of the month and the year. For example, 9 January, 2007.

Information text color

Sets the text color for the date in the title bar.

Information alignment

Sets the alignment for the date in the title bar.

Show browse buttons

Displays the browse buttons when checked.

Background

Background color

Sets the background color for the title.

Gradient color

Sets the background gradient color.

Gradient

Sets the background gradient mode.

Gamma correction

Applies gamma correction to the background gradient when checked.

Gradient center

Sets the center of the gradient background.

Gradient blend

Sets the Drawing.Drawing2D.Blend used to paint the background gradient.


Sets the background image.
