Time Ruler Node

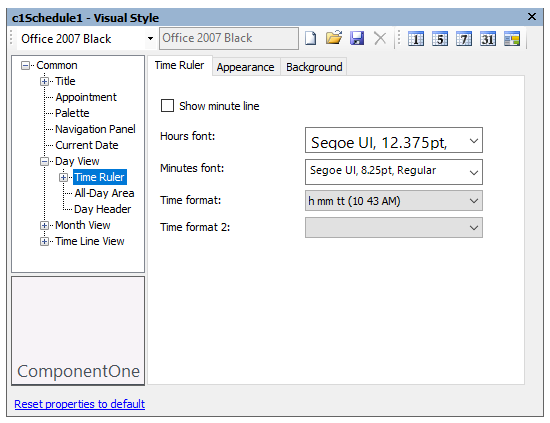

Through the Time Ruler node of the Visual Style dialog box, you can set the font and border properties for the time ruler.

The following properties are available through the Time Ruler node:

Tab	Property	Description
Time Ruler	Show minute line	Displays the minute line when checked.
	Hours font	Sets the font for the hours.
	Minutes font	Sets the font for the minutes.
	Time format	Sets the format for the time. Available formats include: T - Displays the hour, minute, and second range, as well as the A.M./P.M. designator. For example, 8:00:00 AM. t - Displays the hour and minute range. For example, 8:00. h mm - Displays the hour in the range 0-23 and the minute in the range 0-59. If the minute is a single digit (0-9), it is formatted with a preceding 0 (01-09). For example, 8 00. h tt - Displays the hour in the range 1-12 and the A.M./P.M. designator. For example, 8 AM.
Appearance	Text color	Sets the text color for the time ruler.
	Padding	Sets the padding around the time text.
	Border	Sets the border width for the time ruler.
	Border color	Sets the border color for the time ruler.
	Alignment	Sets the alignment for the time ruler text.
Background	Background color	Sets the background color for the time ruler.
	Gradient color	Sets the background gradient color.
	Gradient	Sets the background gradient mode.
	Gamma correction	Applies gamma correction to the background gradient when checked.
	Gradient center	Sets the center of the gradient background.
	Gradient blend	Sets the Drawing.Drawing2D.Blend used to paint the background gradient.
	Image	Sets the background image.
