C1RadialGauge Templates and Template Groups

Gauges for WinForms provides a wide variety of built-in gauge templates and six template groups, or Item Groups, which provide the available templates for the group you choose.

To access the C1RadialGauge templates and template groups, select the C1Gauge control on your form and click the smart tag.

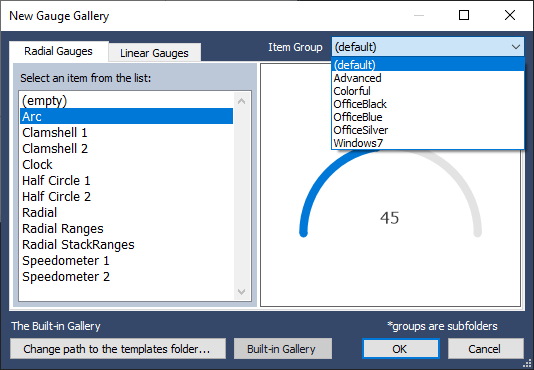

Select Add New Gauge from the C1Gauge Tasks menu. The New Gauge Gallery dialog box appears.

Click the Radial Gauges tab. You can select one of the built-in templates or choose (empty) to create your own.

To select a template group, click the drop-down list next to Item Group. Notice that the available templates for the group appear in the list under Radial Gauges.

Template Groups

The following tables display the templates available for each of the six Item Groups.

Item Group: (default)

Clamshell 1	Clamshell 2
Clock	Radial
Half Circle 1	Half Circle 2
Radial Ranges	Radial StackRanges
Speedometer 1	Speedometer 2

Item Group: (Colorful)

Auto Clamshell	Barometer	BI Clamshell
BI Radial	Blue Tracker	Clock
Dark Dial	Fuelmeter	Gage Dial
Half-Circular	Knob	Multi Range
Needle Gauge	Radial Indicator	Radial Numeric
Range Dial	Simple Range	Sliding Scale
Soft Meter	Speedometer	Tachometer
Technical

Item Group: Advanced

Concept Car	Helical	Logarithmic

Item Group: OfficeBlack, OfficeBlue, OfficeSilver

Note that the color of the template will be different, depending on which Office template group you choose.

Clamshell 1	Clamshell 2
Half Circle	Radial

Item Group: Windows 7

Clamshell 1	Clamshell 2	Clamshell 3
Clamshell 4	Half Circle 1	Half Circle 2
Radial 1	Radial 2

See Also

C1LinearGauge Templates and Template Groups
