C1LinearGauge Templates and Template Groups
To access the C1LinearGauge templates, select the C1Gauge control and click the smart tag. Select Add New Gauge from the C1Gauge Tasks menu.

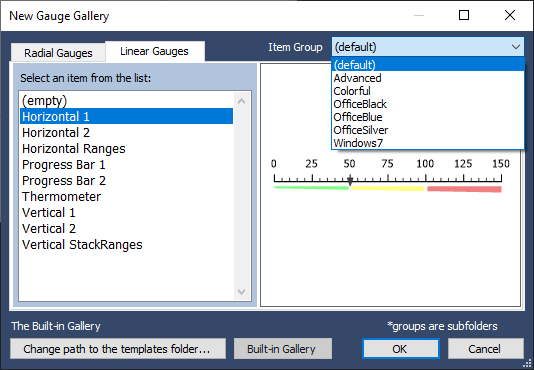

The New Gauge Gallery dialog box appears, allowing you to pick and choose templates and template groups.
Click the Linear Gauges tab. You can select one of the built-in templates or choose (empty) to create your own.
To select a template group, click the drop-down list next to Item Group. Notice that the available templates for the group appear in the list under Linear Gauges.
Template Groups
The following tables display the templates available for each of the six Item Groups.
Item Group: Default
 Horizontal 1 |
 Horizontal 2 |
|---|---|
 Progress Bar 1 |
 Progress Bar 2 |
 Thermometer |
 Horizontal Ranges |
 Vertical 1 |
 Vertical 2 |
 Vertical StackRanges |
Item Group: (Colorful)
 BI Linear |
 Simple Blue |
|---|---|
 Bounds Checking |
 Simple Ruler |
 Flat Thermometer |
 Vertical |
 Ruler |
Item Group: Advanced
 Frequencies |
 Lituus |
 Thermometer |
|---|
Item Group: OfficeBlack, OfficeBlue, OfficeSilver
Note that the color of the template will be different, depending on which Office template group you choose.
 Horizontal |
 Progress Bar |
|---|---|
 Thermometer |
 Vertical |
Item Group: Window7
 Horizontal |
 Progress Bar |
 Thermometer |
|---|---|---|
 Vertical 1 |
 Vertical 2 |
