Creating Dashboard with Split Layout

This topic guides you through the steps to create a lead conversion dashboard using split layout. It displays the lead conversion ratio, sales in different countries in a pie chart, and sales details of companies in a FlexgGrid.

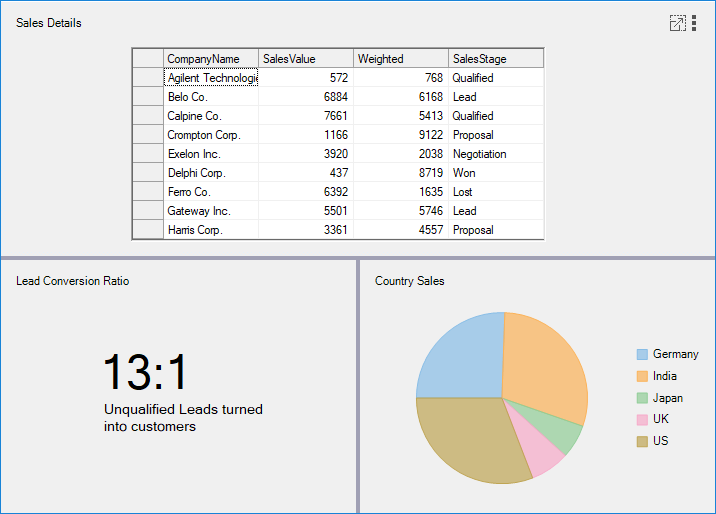

Dashboard Split Layout

Create a new Windows Forms App.
In the Windows Forms Designer, set the height of the form to 730 and width to 550.
Drag and drop a DashboardLayout control from the Toolbox onto your form.
Observe: By default, a layout of the type Split is attached to it.
Select the DashboardLayout control. In the Properties window, set it's Dock property to Fill.
Click inside the DashboardLayout control. The SplitContentPanel (layout control attached to the DashboardLayout by default) is selected.
Observe: By default, SplitContentPanel contains two child containers named C1SplitterPanel1 and C1SplitterPanel2 of type C1SplitterPanel and the C1SplitterPanel2 is aligned horizontally below the C1SplitterPanel1.
Click on the SplitContentPanel’s smart tag to open its Tasks Menu. Select Add Panel from the DashboardSplitContainer Tasks menu.
A third child container named C1SplitterPanel3 is added to the DashboardLayout control land it aligns itself horizontally below the C1SplitterPanel2.
Select C1SplitterPanel1 and set its Caption on c1DashboardLayout1 property to Sales Details.
Select C1SplitterPanel2 and set the following properties.
Property Name
Value
Dock
Fill
Caption on c1DashboardLayout1
Lead Conversion Ratio

9. Select C1SplitterPanel3 and set the following properties.

Property Name	Value
Text
Caption on c1DashboardLayout1	Country Sales

10. Drag and drop the C1FlexGrid control on C1SplitterPanel1 and set the following properties.

Property Name	Value
Location	130,45
Size	415,195

Add a class named SalesDetails.cs to the project and copy the following code to it to add data for FlexGrid.

public class SalesDetails
{
    public SalesDetails(string companyName, double salesValue, double weighted,string salesStage)
    {
        CompanyName = companyName;
        SalesValue = salesValue;
        Weighted = weighted;
        SalesStage = salesStage;
    }
    public SalesDetails() { }
    public string CompanyName { get; set; }
    public double SalesValue { get; set; }
    public double Weighted { get; set; }
    public string SalesStage { get; set; }
    public List<SalesDetails> GetData()
    {
        string[] companyNames = { "Agilent Technologies", "Belo Co.", "Calpine Co.", "Crompton Corp.", "Exelon Inc.", "Delphi Corp.", "Ferro Co.","Gateway Inc.","Harris Corp."};
        string[] salesStages={"Qualified", "Lead", "Qualified", "Proposal", "Negotiation", "Won", "Lost","Lead","Proposal"};
        List<SalesDetails> salesDetailsList = new List<SalesDetails>();
        Random random = new Random();
        for(int i=0;i<9;i++)
        {
            salesDetailsList.Add(new SalesDetails(companyNames[i],random.Next(0,10000), random.Next(1,10000),salesStages[i]));
        }
        return salesDetailsList;
    }
}

public class SalesDetails
{
    public SalesDetails(string companyName, double salesValue, double weighted,string salesStage)
    {
        CompanyName = companyName;
        SalesValue = salesValue;
        Weighted = weighted;
        SalesStage = salesStage;
    }
    public SalesDetails() { }
    public string CompanyName { get; set; }
    public double SalesValue { get; set; }
    public double Weighted { get; set; }
    public string SalesStage { get; set; }
    public List<SalesDetails> GetData()
    {
        string[] companyNames = { "Agilent Technologies", "Belo Co.", "Calpine Co.", "Crompton Corp.", "Exelon Inc.", "Delphi Corp.", "Ferro Co.","Gateway Inc.","Harris Corp."};
        string[] salesStages={"Qualified", "Lead", "Qualified", "Proposal", "Negotiation", "Won", "Lost","Lead","Proposal"};
        List<SalesDetails> salesDetailsList = new List<SalesDetails>();
        Random random = new Random();
        for(int i=0;i<9;i++)
        {
            salesDetailsList.Add(new SalesDetails(companyNames[i],random.Next(0,10000), random.Next(1,10000),salesStages[i]));
        }
        return salesDetailsList;
    }
}

Add the following code to Form1_Load event to populate the grid with data.

SalesDetails salesDetails = new SalesDetails();
List<SalesDetails> salesDetailsList = salesDetails.GetData();
c1FlexGrid1.DataSource = salesDetailsList;

Dim salesDetails As SalesDetails =  New SalesDetails()
Dim salesDetailsList As List<SalesDetails> =  salesDetails.GetData()
c1FlexGrid1.DataSource = salesDetailsList

Drag and drop a Label control on C1SplitterPanel2 and set the following properties:

Property Name	Value
Location	90,85
Text	13:1
Font > Size	35

Now, drag and drop another Label control on C1SplitterPanel2 and set the following properties:

Property Name	Value
Location	100,140
Text	Unqualified Leads turned into customers
Font > Size	10

Add a FlexPie to C1SplitterPanel3 and set the following properties:

Property Name	Value
Dock	Fill
BindingName	CountryName
Binding	OpportunityCount

Add a class named CountrySales.cs to the project and copy the following code to it to add data for FlexPie.

public class CountrySales
{
    public CountrySales(string countryName, int opportunityCount)
    {
        CountryName = countryName;
        OpportunityCount = opportunityCount;
    }
    public CountrySales() { }
    public string CountryName { get; set; }
    public int OpportunityCount { get; set; }
    public List<CountrySales> GetData()
    {
        string[] countryNames = {"Germany", "India", "Japan", "UK" , "US" };
        List<CountrySales> countrySalesList = new List<CountrySales>();
        Random random = new Random();
        for (int i = 0; i < 5; i++)
            countrySalesList.Add(new CountrySales(countryNames[i],random.Next(0,30)));
        return countrySalesList;
    }
}

Public Class CounTrySales
    Public  Sub New(ByVal counTryName As String, ByVal opportunityCount As Integer)
        CounTryName = counTryName
        OpportunityCount = opportunityCount
    End Sub
    Public  Sub New()
    End Sub
    Public Property CounTryName() As String
    End Property
    Public Property OpportunityCount() As Integer
    End Property
    Public List<New> Sub GetData()
        Dim counTryNames() As String = {"Germany", "India", "Japan", "UK" , "US"}
        Dim counTrySalesList As List<CounTrySales> =  New List<CounTrySales>()
        Dim random As Random =  New Random()
            Dim i As Integer
            For  i = 0 To  5- 1  Step  i + 1
                counTrySalesList.Add(New CounTrySales(counTryNames(i),random.Next(0,30)))
            Next
        Return counTrySalesList
    End Sub
End Class

Add the following code to Form1’s Load event to populate the pie with data.

CountrySales countrySales = new CountrySales();
List<CountrySales> countrySalesList = countrySales.GetData();
flexPie1.DataSource = countrySalesList;

Dim counTrySales As CounTrySales =  New CounTrySales()
Dim counTrySalesList As List<CounTrySales> =  counTrySales.GetData()
flexPie1.DataSource = counTrySalesList

The sales conversion dashboard gets created.
