Cross-Tab Reports

Cross-tab reports group data in two dimensions (down and across). They are useful for summarizing large amounts of data in a format that cross-references information.

The following steps create a cross-tab report in the report created in Quick Start.

1. Add a Button to the Form in the FlexReport Quick Start project.

2. Set the Button Name to 'crossC1Button' and Text to 'View Cross Tab-Report'.

3. Create Click event as crossC1Button_Click.

4. Write the following code.

   Group grp2;
   private void crossC1Button_Click(object sender, EventArgs e) {
     btnEmployees.PerformClick();
     c1FlexReport1.Sections.Detail.Visible = false;
     grp2 = c1FlexReport1.Groups.Add("GrpCountry", "Country", SortEnum.Ascending);
     // format the Header section for the new group
     c1FlexReport1.Sections.PageHeader.Height = 600;
     shpfld2.Top = 600;
     s = grp2.SectionHeader;
     s.Height = 400;
     s.AutoHeight = AutoSizeBehavior.GrowAndShrink;
     s.Visible = true;
     textFld4.Text = "Country";
     textFld4.Width = 1000;
     textFld4.Align = FieldAlignEnum.CenterMiddle;
     textFld4.Height = 400;
     textFld4.Font.Bold = true;
     textFld4.Font.Size = 10;
     textFld5.Text = "Total";
     textFld5.Width = 1000;
     textFld5.Left = 1000;
     textFld5.Align = FieldAlignEnum.CenterMiddle;
     textFld5.Height = 400;
     textFld5.Font.Bold = true;
     textFld5.Font.Size = 10;
     textFld6.Text = "Sales Representative";
     textFld6.Width = 2000;
     textFld6.Left = 2000;
     textFld6.Align = FieldAlignEnum.CenterMiddle;
     textFld6.Height = 500;
     textFld6.Font.Bold = true;
     textFld6.Font.Size = 10;
     textFld7.Text = "Vice President";
     textFld7.Width = 1500;
     textFld7.Left = 4000;
     textFld7.Align = FieldAlignEnum.CenterMiddle;
     textFld7.Height = 400;
     textFld7.Font.Bold = true;
     textFld7.Font.Size = 10;
     textFld8.Text = "Sales Manager";
     textFld8.Width = 1500;
     textFld8.Left = 5800;
     textFld8.Align = FieldAlignEnum.CenterMiddle;
     textFld8.Height = 400;
     textFld8.Font.Bold = true;
     textFld8.Font.Size = 10;
     TextField isc = new TextField();
     isc.Text = "Inside Sales Coordinator";
     isc.Width = 1500;
     isc.Left = 7500;
     isc.Align = FieldAlignEnum.CenterMiddle;
     isc.Height = 400;
     isc.Font.Bold = true;
     isc.Font.Size = 10;
     isc.Visible = true;
     c1FlexReport1.Sections.PageHeader.Fields.Add(isc);
     Field f1 = new Field();
     f1.Name = "Country";
     f1.Text = "Country";
     f1.Left = 80;
     f1.Top = 0;
     f1.Width = 1000;
     f1.Height = 400;
     f1.Align = FieldAlignEnum.CenterMiddle;
     f1.MarginLeft = 100;
     f1.Calculated = true;
     f1.Visible = true;
     f1.BackColor = Color.Transparent;
     f1.Font.Bold = true;
     f1.Font.Size = 10;
     s.Fields.Add(f1);
     TextField f7 = new TextField();
     f7.Name = "RunCount";
     f7.Text = "=Count(Title)";
     f7.Left = 1080;
     f7.Top = 0;
     f7.Width = 1000;
     f7.Height = 400;
     f7.Align = FieldAlignEnum.CenterMiddle;
     f7.MarginLeft = 100;
     f7.Visible = true;
     f7.Font.Bold = true;
     f7.Font.Size = 10;
     s.Fields.Add(f7);
     TextField f8 = new TextField();
     f8.Name = "SRCount";
     f8.Text = "=Count(Title, Title = \"Sales Representative\")";
     f8.Left = 2080;
     f8.Top = 0;
     f8.Width = 1000;
     f8.Height = 400;
     f8.Align = FieldAlignEnum.CenterMiddle;
     f8.MarginLeft = 100;
     f8.Visible = true;
     f8.Font.Bold = true;
     f8.Font.Size = 10;
     s.Fields.Add(f8);
     TextField f9 = new TextField();
     f9.Name = "VPCount";
     f9.Text = "=Count(Title, Title = \"Vice President, Sales\")";
     f9.Left = 4000;
     f9.Top = 0;
     f9.Width = 1000;
     f9.Height = 400;
     f9.Align = FieldAlignEnum.CenterMiddle;
     f9.MarginLeft = 100;
     f9.Visible = true;
     f9.Font.Bold = true;
     f9.Font.Size = 10;
     s.Fields.Add(f9);
     TextField f10 = new TextField();
     f10.Name = "SMCount";
     f10.Text = "=Count(Title, Title = \"Sales Manager\")";
     f10.Left = 5800;
     f10.Top = 0;
     f10.Width = 1000;
     f10.Height = 400;
     f10.Align = FieldAlignEnum.CenterMiddle;
     f10.MarginLeft = 100;
     f10.Visible = true;
     f10.Font.Bold = true;
     f10.Font.Size = 10;
     s.Fields.Add(f10);
     TextField f11 = new TextField();
     f11.Name = "ISCCount";
     f11.Text = "=Count(Title, Title = \"Inside Sales Coordinator\")";
     f11.Left = 7500;
     f11.Top = 0;
     f11.Width = 1000;
     f11.Height = 400;
     f11.Align = FieldAlignEnum.CenterMiddle;
     f11.MarginLeft = 100;
     f11.Visible = true;
     f11.Font.Bold = true;
     f11.Font.Size = 10;
     s.Fields.Add(f11);
     c1FlexReport1.Render();
   }

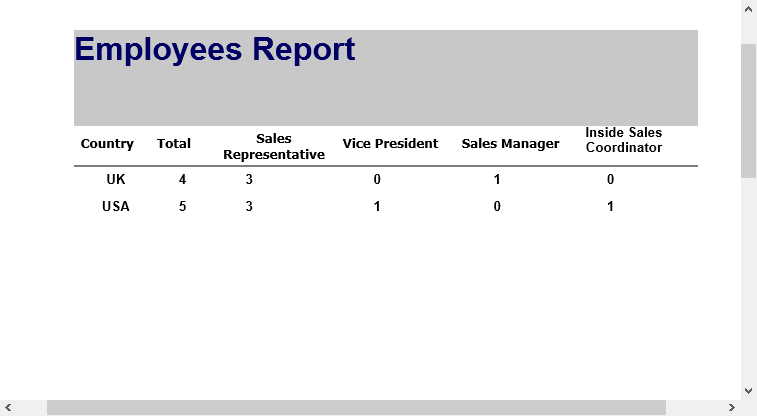

5. Run the project. Click 'View Cross Tab-Report' button to view cross-tab report. Observe that the details corresponding to the employee titles in the two countries are shown.
