Using Visual Studio Template

Visual Studio Project template allows you to create a simple ASP.NET Core MVC application. To use C1 MVC controls, few additional steps are required to configure the project created using the basic Visual Studio project template.

1. Open Visual Studio and Select Create a new project.

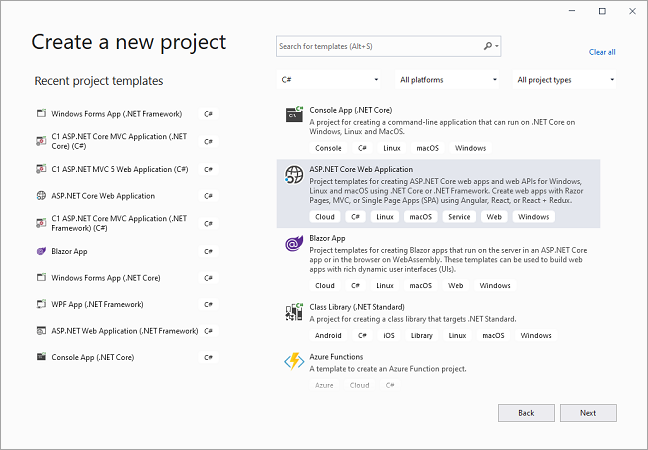

2. In the Create a new project window, select ASP.NET Core Web Application and click Next.

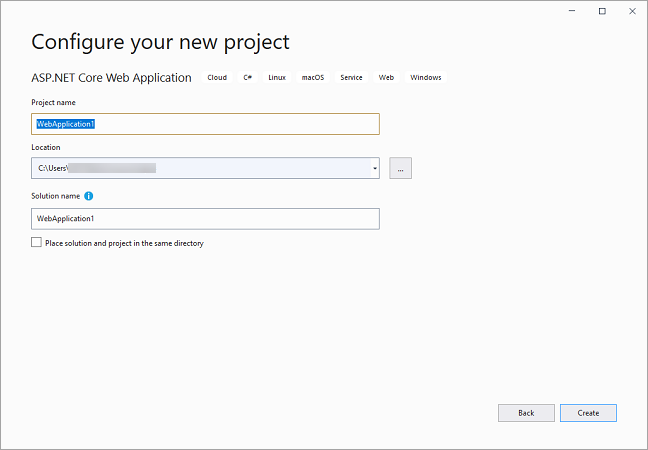

3. In the Configure your new project window, write your project name, choose location to save your project and click Create.

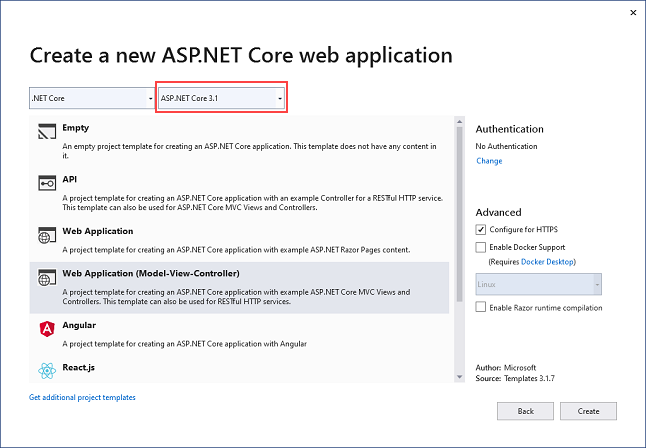

4. In the Create a new ASP.NET Core web application window, select the ASP.NET Core version, say ASP.NET Core 3.1, and click Create.


5. From the Solution Explorer, expand the folder Views and double click the _ViewImports.cshtml file to open it.

6. In the _ViewImports.cshtml file, add the following code.

   @addTagHelper *, C1.AspNetCore.Mvc


7. (Optional) To add specific controls in your application, you need to add the following TagHelpers in the _ViewImports.cshtml file.

   Control	TagHelper
   Financial Chart	@addTagHelper *, C1.AspNetCore.Mvc.Finance
   FlexSheet	@addTagHelper *, C1.AspNetCore.Mvc.FlexSheet
   OLAP	@addTagHelper *, C1.AspNetCore.Mvc.Olap
   MultiRow	@addTagHelper *, C1.AspNetCore.Mvc.MultiRow
   FlexViewer	@addTagHelper *, C1.AspNetCore.Mvc.FlexViewer
   TransposedGrid	@addTagHelper *, C1.AspNetCore.Mvc.TransposedGrid
   TransposedMultiRow	@addTagHelper *, C1.AspNetCore.Mvc.TransposedMultiRow

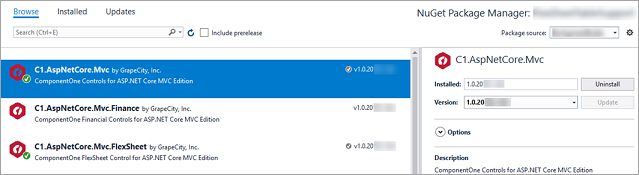

8. Add the ASP.NET MVC Core Edition references to the project. In the Solution Explorer, right click References and select Manage NuGet Packages. In NuGet Package Manager, select https://api.nuget.org/v3/index.json as the Package source. Search for C1.AspNetCore.Mvc package, and click Install.



   type=note

   Note: "C1.AspNetCore.Mvc" gets added under the "dependencies" within project.json file of your project once you restore the packages.

9. To use specific controls in your application, add the following NuGet Packages based on the control.

   Control	NuGet Package
   Financial Chart	C1.AspNetCore.Mvc.Finance
   FlexSheet	auto C1.AspNetCore.Mvc.FlexSheet
   OLAP	auto C1.AspNetCore.Mvc.Olap
   MultiRow	auto C1.AspNetCore.Mvc.MultiRow
   FlexViewer	C1.AspNetCore.Mvc.FlexViewer
   TransposedGrid	C1.AspNetCore.Mvc.TransposedGrid
   TransposedMultiRow	C1.AspNetCore.Mvc.TransposedMultiRow




10. To add a license, right-click the solution name from the Solution Explorer or go to the Tools menu, and then select MESCIUS License Manager. Optionally, you can also generate runtime license key and add it to your application. For more information on generating license, see Licensing topic.


11. After completing the steps above, register the resources for the controls to be used in the application. For more information, see Registering Resources.


12. Add map route using the following line of code (highlighted in bold) in the Configure method, Startup.cs file (For MVC Core 3.0 apps).


app.UseEndpoints(endpoints => { endpoints.MapRazorPages(); endpoints.MapControllers(); });
