Generate Document using JSON Data Source

Report Templates allow you to bind the template with JSON data source by using Add method of IDictionary interface. The data can be added from a JSON file, stream, string etc. and bound to populate actual data upon template processing. For more information on different ways to work with JSON data source, refer Data Source Binding.

The following example takes you through a step by step process to generate a Word document with the list of oceans provided as a JSON string.

1. Create a template layout in a Word document as shown below. You can also download the Template layout from here.







2. Load the template created in above step, in DsWord.

   GcWordDocument doc = new GcWordDocument();
   //Load template layout
       doc.Load("OceansList[Template].docx");




3. Pass the data in a JSON string.

   var oceans = @"[
           {
               ""name"": ""Pacific"",
               ""areaOfWorldOcean"": 0.466,
               ""volumeOfWorldOcean"": 0.501,
               ""seas"": [
                   {""name"": ""Australasian Mediterranean Sea""},
                   {""name"": ""Philippine Sea""},
                   {""name"": ""Coral Sea""},
                   {""name"": ""South China Sea""}],
           },
           {
               ""name"": ""Atlantic"",
               ""areaOfWorldOcean"": 0.235,
               ""volumeOfWorldOcean"": 0.233,
               ""seas"": [
                   {""name"": ""Sargasso Sea""},
                   {""name"": ""Caribbean Sea""},
                   {""name"": ""Mediterranean Sea""},
                   {""name"": ""Gulf of Guinea""}],
           },
           {
               ""name"": ""Indian"",
               ""areaOfWorldOcean"": 0.195,
               ""volumeOfWorldOcean"": 0.198,
               ""seas"": [
                   {""name"": ""Arabian Sea""},
                   {""name"": ""Bay of Bengal""},
                   {""name"": ""Andaman Sea""},
                   {""name"": ""Laccadive Sea""}],
           },
           {
               ""name"": ""Southern"",
               ""areaOfWorldOcean"": 0.061,
               ""volumeOfWorldOcean"": 0.054,
               ""seas"": [
                   {""name"": ""Weddell Sea""},
                   {""name"": ""Somov Sea""},
                   {""name"": ""Riiser-Larsen Sea""},
                   {""name"": ""Lazarev Sea""}],
           },
           {
               ""name"": ""Arctic"",
               ""areaOfWorldOcean"": 0.043,
               ""volumeOfWorldOcean"": 0.014,
               ""seas"": [
                   {""name"": ""Barents Sea""},
                   {""name"": ""Greenland Sea""},
                   {""name"": ""East Siberian Sea""},
                   {""name"": ""Kara Sea""}],
           }
       ]";




4. Add above data as a data source for the template.

   doc.DataTemplate.DataSources.Add("ds", oceans);




5. Process the template by using Process method.

   //Process the template
   doc.DataTemplate.Process();




6. Save the final Word document.

   //Save the final document
   doc.Save("List of Oceans.docx");

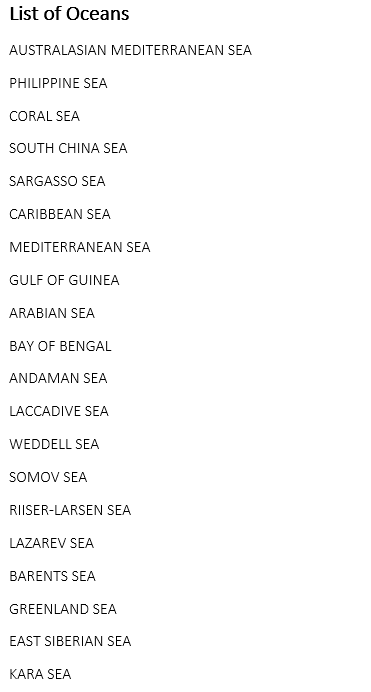

   The output of the above code is shown as below:
