Export Barcodes

DsExcel can render barcode formulas in a worksheet when exporting the workbook to a PDF document.

Supported Barcode Types

DsExcel supports exporting the following barcode types to PDF:

Export Barcodes to PDF

To export barcodes, add the required barcode formulas to worksheet cells and save the workbook to a PDF file. DsExcel calculates and renders the formulas in the PDF output.

Refer to the following example code to export barcodes to PDF document.

// Create a new workbook.
var workbook = new GrapeCity.Documents.Excel.Workbook();

// Set worksheet layout and data.
IWorksheet worksheet = workbook.Worksheets[0];
worksheet.Range["A:A"].ColumnWidth = 2;
worksheet.Range["B:C"].ColumnWidth = 15;
worksheet.Range["D:G"].ColumnWidth = 25;
worksheet.Range["4:14"].RowHeight = 57;
worksheet.Range["B3"].Value = "Type";
worksheet.Range["C3"].Value = "Data";
worksheet.Range["B2"].Value = "Barcode";
worksheet.Range["B2:G2"].Merge(true);
worksheet.Range["D3:G3"].Value = new object[,]{
    {"Default", "Change color", "Change showLable", "Change lablePosition"}
};
worksheet.PageSetup.PrintTitleColumns = "$A:$C";
worksheet.Range["B4:C14"].HorizontalAlignment = HorizontalAlignment.Center;
worksheet.Range["B4:C14"].VerticalAlignment = VerticalAlignment.Center;
worksheet.Range["B2:G3"].HorizontalAlignment = HorizontalAlignment.Center;
worksheet.Range["B2:G3"].VerticalAlignment = VerticalAlignment.Center;
worksheet.Range["B4:C14"].Value = new object[,]
{
    {"QR code", "Policy:411"},
    {"Data Matrix", "Policy:411"},
    {"PDF417", 6935205311092},
    {"EAN-8", 4137962},
    {"EAN-13", 6920312296219},
    {"Code39", 3934712708295},
    {"Code93", 6945091701532},
    {"Code49", 6901668002433},
    {"Code128", 465465145645},
    {"Codabar", 9787560044231},
    {"gs1128", 235465143135}
};
string[] types = {
    "BC_QRCODE",
    "BC_DataMatrix",
    "BC_PDF417",
    "BC_EAN8",
    "BC_EAN13",
    "BC_CODE39",
    "BC_CODE93",
    "BC_CODE49",
    "BC_CODE128",
    "BC_CODABAR",
    "BC_GS1_128"
};
worksheet.PageSetup.PrintGridlines = true;

// Use formula to add barcode.
for (var i = 0; i < types.Length; i++)
{
    string columnD = "D" + (i + 4);
    string columnE = "E" + (i + 4);
    worksheet.Range[columnD].Formula = "=" + types[i] + "(C" + (i + 4) + ")";
    worksheet.Range[columnE].Formula = "=" + types[i] + "(C" + (i + 4) + ",\"#fff\",\"#000\")";
}

for (var i = 3; i < types.Length; i++)
{
    string columnD = "F" + (i + 4);
    string columnE = "G" + (i + 4);
    worksheet.Range[columnD].Formula = "=" + types[i] + "(C" + (i + 4) + ",,,0)";
    worksheet.Range[columnE].Formula = "=" + types[i] + "(C" + (i + 4) + ",,,,\"top\")";
}

// Save to a pdf file.
workbook.Save("ExportExcelBarcodesToPDF.pdf");

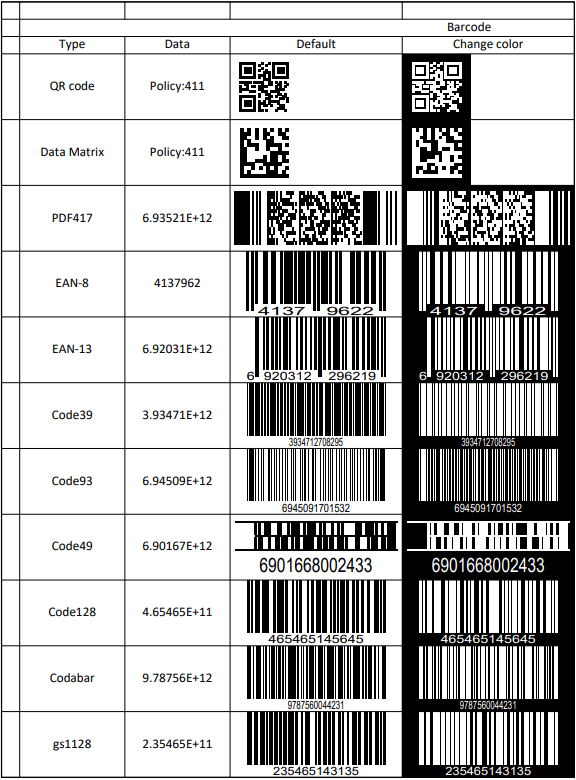

The output is shown in the figure below.

DsExcel PDF output displays worksheet barcode types configured through CellType.BarCode for developers exporting scannable report data.

Limitations

The following parameters in different barcode types have limited or no support while exporting to PDF documents, as is elaborated in the below table:

Barcode Type	Parameter	PDF Export
QRcode	charCode	Not Supported
PDF417	compact	Not Supported
EAN-13	addOn addOnLabelPosition	Not Supported
codabar	checkDigit	Not Supported
code39	labelWithStartAndStopCharacter checkDigit fullASCII	Not Supported
code93	checkDigit fullASCII	Not Supported

Some barcode types support various font options like fontFamily, fontWeight, fontStyle etc. The following font options have limited support as mentioned:

Font Options	PDF Export
fontStyle	'normal' and 'italic'
fontTextDecoration	'normal' and 'underline'
