Row Details

C1FlexGrid control allows you to create a hierarchical grid by adding a row details section to each row. Adding a row details sections allows you to group some data in a collapsible template and present only a summary of the data for each row. The row details section is displayed only when the user taps a row. Moreover, you can set the details visibility mode to expand single, expand multiple or selection, with the help of DetailVisibiltyMode property provided by the FlexGrid class.

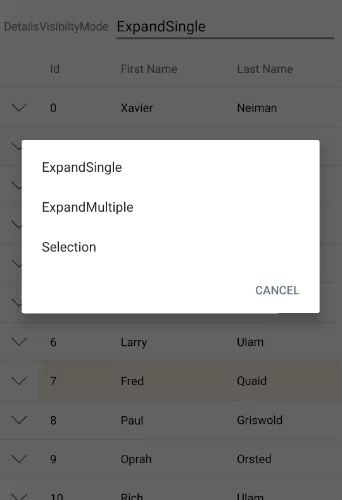

The image given below shows a FlexGrid with row details section added to each row.

The following code examples demonstrate how to add row details section to the FlexGrid control in C#. The example uses the class, Customer, created in the Quick Start section.

1. Add C1FlexGrid control the Mainstoryboard and add data to it through code.

   public partial class ViewController : UIViewController
   {
       public ViewController(IntPtr handle) : base(handle)
       {
       }
       public override void ViewDidLoad()
       {
           base.ViewDidLoad();
           var data = Customer.GetCustomerList(1000);
           Grid.AutoGenerateColumns = false;
           Grid.Columns.Add(new GridColumn() { Binding = "Id", Width = GridLength.Auto });
           Grid.Columns.Add(new GridColumn() { Binding = "FirstName", Width = GridLength.Star });
           Grid.Columns.Add(new GridColumn() { Binding = "LastName", Width = GridLength.Star });
           var details = new FlexGridDetailProvider();
           details.Attach(Grid);
           details.DetailCellCreating += OnDetailCellCreating;
           details.Height = GridLength.Auto;
           Grid.ItemsSource = data;
       }
       private void OnDetailCellCreating(object sender, GridDetailCellCreatingEventArgs e)
       {
           var customer = e.Row.DataItem as Customer;
           e.Content = new DetailView(customer);
       }
   }


2. Create a row details template and add it to the FlexGrid rows for diplaying details.

   public class DetailView : UIView
   {
       double _spacing = 8;
       UILabel _countryLabel;
       UILabel _cityLabel;
       UILabel _addressLabel;
       UILabel _postalCodeLabel;
       public DetailView(Customer customer)
       {
           _countryLabel = new UILabel { Text = string.Format("Country: {0}", customer.Country) };
           _cityLabel = new UILabel { Text = string.Format("City: {0}", customer.City) };
           _addressLabel = new UILabel { Text = string.Format("Address: {0}", customer.Address) };
           _postalCodeLabel = new UILabel { Text = string.Format("Postal Code: {0}", customer.PostalCode) };
           AddSubviews(_countryLabel, _cityLabel, _addressLabel, _postalCodeLabel);
       }
       public override CGSize IntrinsicContentSize
       {
           get
           {
               var countryLabelSize = _countryLabel.IntrinsicContentSize;
               var cityLabelSize = _cityLabel.IntrinsicContentSize;
               var addressLabelSize = _addressLabel.IntrinsicContentSize;
               var postalCodeLabelSize = _postalCodeLabel.IntrinsicContentSize;
               return new CGSize(_spacing * 2 + Math.Max(countryLabelSize.Width, Math.Max(cityLabelSize.Width, Math.Max(addressLabelSize.Width, postalCodeLabelSize.Width))), _spacing * 5 + countryLabelSize.Height + cityLabelSize.Height + addressLabelSize.Height + postalCodeLabelSize.Height);
           }
       }
       public override void LayoutSubviews()
       {
           base.LayoutSubviews();
           var countryLabelSize = _countryLabel.IntrinsicContentSize;
           var cityLabelSize = _cityLabel.IntrinsicContentSize;
           var addressLabelSize = _addressLabel.IntrinsicContentSize;
           var postalCodeLabelSize = _postalCodeLabel.IntrinsicContentSize;
           _countryLabel.Frame = new CGRect(_spacing, _spacing, countryLabelSize.Width, countryLabelSize.Height);
           _cityLabel.Frame = new CGRect(_spacing, _spacing + countryLabelSize.Height + _spacing, cityLabelSize.Width, cityLabelSize.Height);
           _addressLabel.Frame = new CGRect(_spacing, _spacing + countryLabelSize.Height + _spacing + cityLabelSize.Height + _spacing, addressLabelSize.Width, addressLabelSize.Height);
           _postalCodeLabel.Frame = new CGRect(_spacing, _spacing + countryLabelSize.Height + _spacing + cityLabelSize.Height + _spacing + addressLabelSize.Height + _spacing, postalCodeLabelSize.Width, postalCodeLabelSize.Height);
       }
   }
