Alignment

The HorizontalContentAlignment and VerticalContentAlignment properties allow you to customize the alignment of nodes within the chart. The default value is Center for both properties, so nodes are centered within the tree. The images below show the effect of the other possible settings:

Left

If you set HorizontalContentAlignment to "Left":

<c1:C1OrgChart
   x:Name="_orgChart"
   HorizontalContentAlignment="Left"
   ItemTemplate="{StaticResource EmployeeTemplate }" >
 </c1:C1OrgChart>

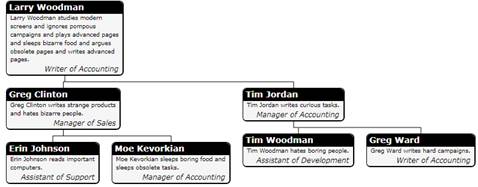

The OrgChart will appear as follows:

Stretch

If you set HorizontalContentAlignment to "Stretch":

<c1:C1OrgChart
   x:Name="_orgChart"
   HorizontalContentAlignment="Stretch"
   ItemTemplate="{StaticResource EmployeeTemplate }" >
 </c1:C1OrgChart>

The OrgChart will appear as follows:

Right

If you set HorizontalContentAlignment to "Right":

<c1:C1OrgChart
   x:Name="_orgChart"
   HorizontalContentAlignment="Right"
   ItemTemplate="{StaticResource EmployeeTemplate }" >
 </c1:C1OrgChart>

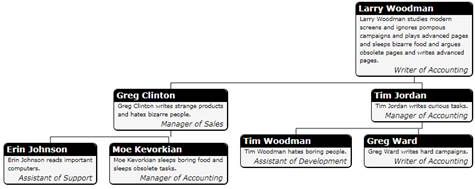

The OrgChart will appear as follows:
