Quick Start

This quick start familiarizes you with adding and displaying data to the InputPanel control using list. You begin with creating a WPF application in Visual Studio, adding the InputPanel control to it, creating a list of items, and binding it to InputPanel.

To create a simple WPF application for adding and displaying data in the InputPanel control, complete the following steps:

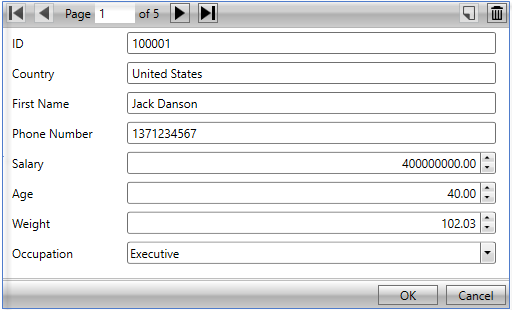

The following image shows a record displayed in the C1InputPanel control.

Setting up the application

Create a WPF project in Visual Studio.
Add the InputPanel control to the XAML designer and set the name of the control to 'InPanel'.
Notice that along with C1.WPF.InputPanel, the following references automatically get added to the application.
- C1.WPF
- C1.WPF.DateTimeEditors

Adding and displaying data in InputPanel

Switch to the code view and add a class, Customer, to define data.

Add the following code to create an enumeration and add properties to the class.

Public Class Customer
    Public Property ID() As String
        Get
            Return m_ID
        End Get
        Set(value As String)
            m_ID = value
        End Set
    End Property
    Private m_ID As String
    Public Property Country() As String
        Get
            Return m_Country
        End Get
        Set(value As String)
            m_Country = value
        End Set
    End Property
    Private m_Country As String
    Public Property Name() As String
        Get
            Return m_Name
        End Get
        Set(value As String)
            m_Name = value
        End Set
    End Property
    Public Property Phone() As String
        Get
            Return m_Phone
        End Get
        Set(value As String)
            m_Phone = value
        End Set
    End Property
    Private m_Phone As String
    Private m_Name As String
    Public Property Age() As Integer
        Get
            Return m_Age
        End Get
        Set(value As Integer)
            m_Age = value
        End Set
    End Property
    Private m_Age As Integer
    Public Property Weight() As Double
        Get
            Return m_Weight
        End Get
        Set(value As Double)
            m_Weight = value
        End Set
    End Property
    Private m_Weight As Double
    Public Property Occupation() As Occupation
        Get
            Return m_Occupation
        End Get
        Set(value As Occupation)
            m_Occupation = value
        End Set
    End Property
    Private m_Occupation As Occupation
    Public Sub New(id As String, country _
                   As String, name As String, _
                   age As Integer, _
                   weight As Double, _
                   occupation As Occupation, _
        phone As String)
        Me.ID = id
        Me.Country = country
        Me.Name = name
        Me.Age = age
        Me.Weight = weight
        Me.Occupation = occupation
        Me.Phone = phone
    End Sub
End Class
Public Enum Occupation
    Doctor
    Artist
    Educator
    Engineer
    Executive
    Other
End Enum

csharp

public class Customer
{
    public string ID { get; set; }
    public string Country { get; set; }
    public string Name { get; set; }
    public string Phone { get; set; }
    public int Salary { get; set; }
    public int Age { get; set; }
    public double Weight { get; set; }
    public Occupation Occupation { get; set; }
    public Customer(string id, string country,
        string name, int age,
        double weight, Occupation
        occupation, string phone, int salary)
    {
        this.ID = id;
        this.Country = country;
        this.Name = name;
        this.Age = age;
        this.Weight = weight;
        this.Occupation = occupation;
        this.Phone = phone;
        this.Salary = salary;
    }
}
public enum Occupation
{
    Doctor,
    Artist,
    Educator,
    Engineer,
    Executive,
    Other
}

Creates a list of Customers and add data to the list using the following code.

Dim data As New List(Of Customer)()
data.Add(New Customer("100001", "United States",
                      "Jack Danson", 40, 102.03,
                      Occupation.Executive, _
    "1371234567"))
data.Add(New Customer("100002", "China",
                      "Tony Tian", 32, 82.2,
                      Occupation.Engineer, _
    "1768423846"))
data.Add(New Customer("100003", "Iran",
                      "Larry Frommer", 15, 40.432,
                      Occupation.Artist, _
    "8473637486"))
data.Add(New Customer("100004", "Germany",
                      "Charlie Krause", 26, 69.32,
                      Occupation.Doctor, _
    "675245438"))
data.Add(New Customer("100005", "India",
                      "Mark Ambers", 51, 75.45,
                      Occupation.Other, _
    "1673643842"))

List<Customer> data = new List<Customer>();
data.Add(new Customer("100001", "United States", "Jack Danson",
    40, 102.03, Occupation.Executive, "1371234567", 400000000));
data.Add(new Customer("100002", "China", "Tony Tian",
    32, 82.2, Occupation.Engineer, "1768423846", 500));
data.Add(new Customer("100003", "Iran", "Larry Frommer",
    15, 40.432, Occupation.Artist, "8473637486", 600));
data.Add(new Customer("100004", "Germany", "Charlie Krause",
    26, 69.32, Occupation.Doctor, "675245438", 700));
data.Add(new Customer("100005", "India", "Mark Ambers",
    51, 75.45, Occupation.Other, "1673643842", 800));

Bind the list to InputPanel through the ItemsSource property as given in the following code.

 InPanel.ItemsSource = data

 InPanel.ItemsSource = data;
