XAML Quick Reference

This topic is dedicated to providing a quick overview of the XAML used to create a C1DockControl, C1DockGroup, C1DockTabControl, and C1DockTabItem.

To get started developing, add a c1 namespace declaration in the root element tag:

xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"

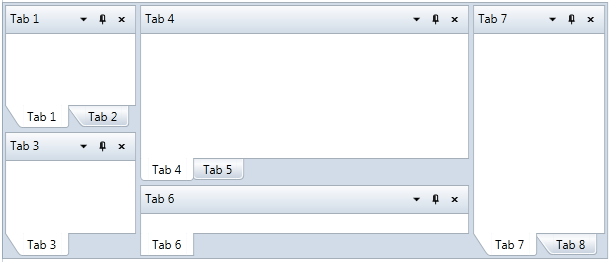

Here is a sample docking layout:

Below is the XAML for the sample docking layout:

<c1:C1DockControl  x:Name="dockControl" Margin="-128,0,12,127">
            <c1:C1DockGroup>
                <c1:C1DockTabControl Dock="Top">
                    <c1:C1DockTabItem Header="Tab 1" TabShape="Sloped">
                        <!--Your Content Here-->
                    </c1:C1DockTabItem>
                    <c1:C1DockTabItem Header="Tab 2" TabShape="Sloped">
                        <!--Your Content Here-->
                    </c1:C1DockTabItem>
                </c1:C1DockTabControl>
                <c1:C1DockTabControl>
                    <c1:C1DockTabItem Header="Tab 3" TabShape="Sloped" >
                        <!--Your Content Here-->
                    </c1:C1DockTabItem>
                </c1:C1DockTabControl>
            </c1:C1DockGroup>
            <c1:C1DockGroup>
                <c1:C1DockTabControl Dock="Top" DockWidth="500" DockHeight="500" TabItemShape="Rounded">
                    <c1:C1DockTabItem Header="Tab 4">
                        <!--Your Content Here-->
                    </c1:C1DockTabItem>
                    <c1:C1DockTabItem Header="Tab 5">
                        <!--Your Content Here-->
                    </c1:C1DockTabItem>
                </c1:C1DockTabControl>
                <c1:C1DockTabControl>
                    <c1:C1DockTabItem Header="Tab 6">
                        <!--Your Content Here-->
                    </c1:C1DockTabItem>
                </c1:C1DockTabControl>
            </c1:C1DockGroup>
            <c1:C1DockTabControl>
                <c1:C1DockTabItem Header="Tab 7" TabShape="Sloped">
                    <!--Your Content Here-->
                </c1:C1DockTabItem>
                <c1:C1DockTabItem Header="Tab 8" TabShape="Sloped">
                    <!--Your Content Here-->
                </c1:C1DockTabItem>
            </c1:C1DockTabControl>
        </c1:C1DockControl>
