QuickStart

The following quick start guides the user how to create a simple application using Accordion. In this quick start, you'll create a new project in Visual Studio, add the Accordion control to your application, and then add content to content area of the Accordion control.

Setup the WPF application

1. Create a new WPF Application in Visual Studio.

2. Install the assembly using the Manage NuGet Packages.

3. Open MainWindow.xaml and replace the existing XAML with the following code:

   <Window x:Class="Accordion_quickstart.MainWindow"
           xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
           xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
           xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
           xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
           xmlns:local="clr-namespace:Accordion_quickstart" xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"
           mc:Ignorable="d"
           Title="MainWindow" Height="450" Width="800">
       <Grid>
       </Grid>
   </Window>


4. Place the cursor between the <Grid></Grid> tags. Now, drag and drop the C1Accordion control from the ToolBox to the <Grid></Grid> tag of MainWindow.xaml. The reference assemblies get automatically added to the References and the code looks as shown below:

   ````
   <Grid>
   <c1:C1Accordion></c1:C1Accordion>
   </Grid>
   ````


Add Controls to the Content Area

1. Place your cursor between the <c1:C1Accordion> and</c1:C1Accordion> tags and press ENTER. Add the following code to add an Expander control to the Accordion pane.

   <!--Add first Expander control in Accordion pane.-->
   <c1:C1Expander Header="Mail" IsExpanded="True">
   </c1:C1Expander>


2. Add items to the Expander, such as ListBox, Image and TextBlock controls as shown below:

   <!--Add listbox items within Expander control.-->
                   <ListBox>
                       <ListBoxItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="All Items" TextWrapping="Wrap" Margin="16,0,0,0" Width="60" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem FontWeight="Bold" FontFamily="Portable User Interface">
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Inbox (1)" TextWrapping="Wrap" Margin="16,0,0,0" Width="60" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem>
                           <Grid>
                               <Image Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Drafts" TextWrapping="Wrap" Margin="16,0,0,0" Width="60" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Sent Items" TextWrapping="Wrap" Margin="16,0,0,0" Width="65" />
                           </Grid>
                       </ListBoxItem>
                       <ListViewItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Trash" TextWrapping="Wrap" Margin="16,0,0,0" Width="60" />
                           </Grid>
                       </ListViewItem>
                   </ListBox>


3. Add the second Expander to fill the Accordion pane.

   <!--Add second Expander control in Accordion pane.-->
               <c1:C1Expander Header="Tasks" IsExpanded="False">
                   <!--Add listbox items within Expander control.-->
                   <ListBox>
                       <ListBoxItem>
                           <Grid>
                               <Image Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="All Tasks" TextWrapping="Wrap" Margin="16,0,0,0" Width="60" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Completed Tasks" TextWrapping="Wrap" Margin="16,0,0,0" Width="94.724" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Active Tasks" TextWrapping="Wrap" Margin="16,0,0,0" Width="87.324" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="Overdue Tasks" TextWrapping="Wrap" Margin="16,0,0,0" Width="88.462" />
                           </Grid>
                       </ListBoxItem>
                       <ListBoxItem>
                           <Grid>
                               <Image  Source="/Folder.png" HorizontalAlignment="Left" />
                               <TextBlock HorizontalAlignment="Left" VerticalAlignment="Top" Text="By Category" TextWrapping="Wrap" Margin="16,0,0,0" Width="75" />
                           </Grid>
                       </ListBoxItem>
                   </ListBox>
               </c1:C1Expander>

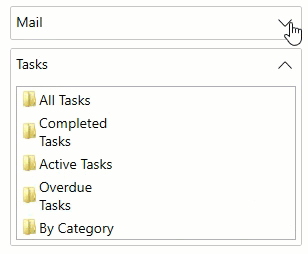

4. Run the application to view how your application will appear at run time.
