Increasing the Size of a Specific Tile
A Tiles size can be increased using the HorizontalSize and VerticalSize properties.
Design-Time
To increase the Tiles size at design-time, complete the following:
- Select the Group and click on Edit Tiles from the C1TileControl Group Tasks menu.
- In the Group.Tiles Collection Editor select tile1[Tile 1] and set the HorizontalSize to 2 and the VerticalSize to 2.
- Click OK to save and close the Group.Tiles Collection Editor.

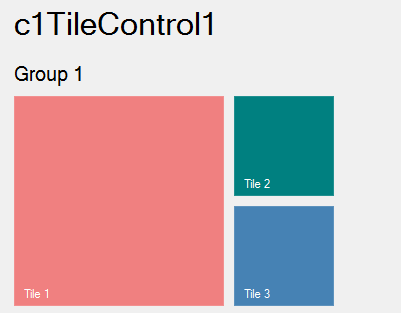

This topic illustrates the following:
Tile 1s size in increased so it appears twice as large as the other two tiles.
