Table of Contents

PrintDocument supports the automatic generation of table of contents (TOC). The RenderToc class is used to represent the table of contents in PrintDocument. This class is derived from RenderArea and adds TOC-specific features.

The individual items within the TOC are represented by the RenderTocItem (derived from RenderParagraph). Each TOC item holds a hyperlink pointing to a location in the document so, the same mechanism is used for connecting TOC items to document content as for the hyperlinks.

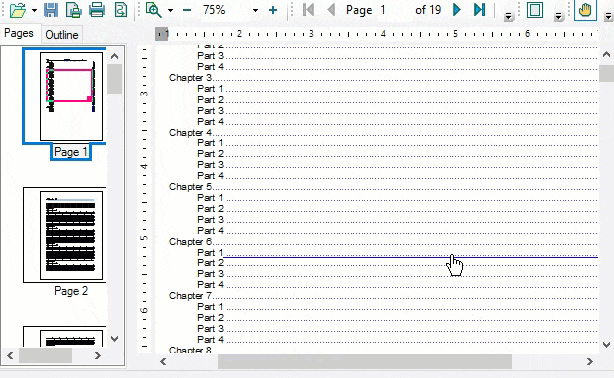

The GIF below depicts the table of contents feature in PrintDocument.

To add a table of contents to your document, do the following:

1. Create an instance of the RenderToc class and add it to your document at the point where you want the TOC to appear.
2. Add individual items (of the type RenderTocItem) to the RenderToc instance using the AddItem method, which provides the text of the item, the location it should point to, and optionally the level in the TOC.
3. Insert RenderToc object into the document using the Insert method of the RenderObjectCollection class. The method uses two parameters, index, which indicates where to insert the object, and RenderObect which adds the object to insert, here the 'ToC'.

The code snippet below shows how to add Table of Contents to a PritnDocument.

// create an instance of RenderToc object
RenderToc toc = new RenderToc();
toc.BreakAfter = BreakEnum.Page;
// loop over chapters
for (int c = 1; c < chapterCount; c++)
{
    // each chapter will be represented as a RenderArea object
    RenderArea chapter = new RenderArea();
    if (c < chapterCount - 1)
        chapter.BreakAfter = BreakEnum.Page;
    RenderText chapterTitle = new RenderText(string.Format("Chapter {0}", c), chapterTitleStyle);
    chapter.Children.Add(chapterTitle);
    chapter.Children.Add(new RenderText(chapterIntroduction.ToString(), AlignHorzEnum.Justify));
    // add item for the chapter to the RenderToc
    toc.AddItem(chapterTitle.Text, chapterTitle, 1);
    // loop over the current chapter's parts
    for (int p = 1; p < partCount; p++)
    {
        RenderText partTitle = new RenderText(string.Format("Chapter {0} part {1}", c, p), partTitleStyle);
        chapter.Children.Add(partTitle);
        chapter.Children.Add(new RenderText(partContent.ToString(), AlignHorzEnum.Justify));
        // add item for the chapter part to the RenderToc
        toc.AddItem(string.Format("Part {0}", p), partTitle, 2);
    }
    // add the chapter to the document
    doc.Body.Children.Add(chapter);
}
// insert the RenderToc into the document immediately after the title
doc.Body.Children.Insert(1, toc);
