Chart and Diagram Rendering and Export

C1Chart and C1Diagram render chart and diagram content to document, raster, and Scalable Vector Graphics (SVG) output through the IRendering interface.

The Render extension method renders a chart or diagram into an IRendering target. The target determines the resulting output format.

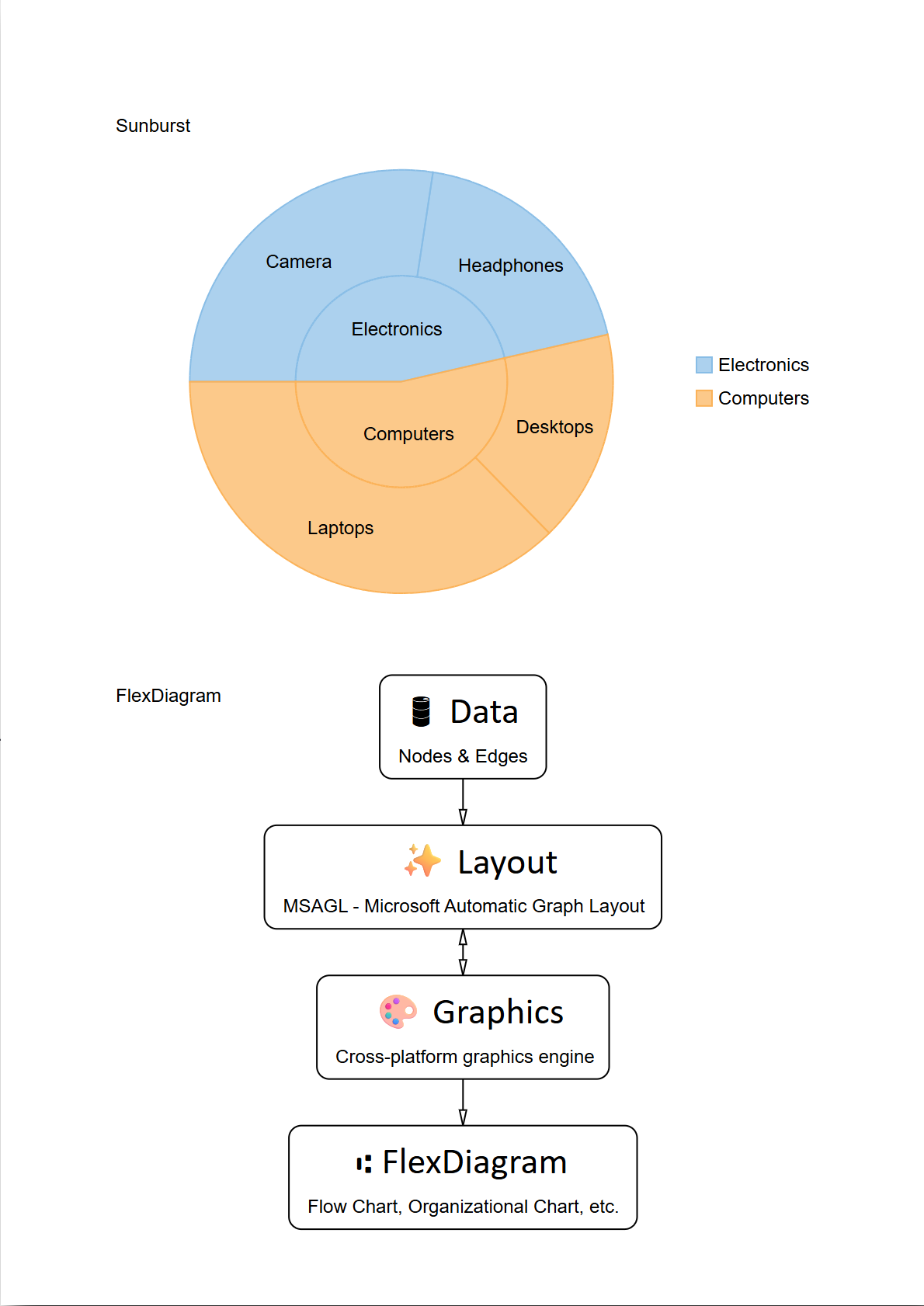

The rendering workflow applies to FlexChart, FlexPie, FlexRadar, TreeMap, Sunburst, and FlexDiagram. The following image shows rendered output for a Sunburst chart and FlexDiagram:

Prerequisites

Package	Minimum version	What it provides
C1.Chart	10.0.20262.107	The Render(IRendering) extension method. Installed automatically as a transitive dependency of any platform FlexChart or FlexDiagram package.
C1.Pdf	10.0.20262.328	C1PdfDocument (PDF output) and C1WordDocument (DOCX/RTF output).
C1.Excel	10.0.20262.328	BitmapGraphicsRendering (PNG), SvgGraphicsRendering (SVG), and SvgRendering (Fast SVG).

Note: These examples use the .NET Standard FlexChart from C1.Chart. Platform-specific FlexChart controls also implement IChartBase, allowing the same Render method to be used without switching to the .NET Standard control.
