Cross-Tab Reports

Cross-tab reports group data in two dimensions (down and across). They are useful for summarizing large amounts of data in a format that cross-references information.


The following steps create a cross-tab report in the report created in FlexReport Quick Start.

  1. Add a Button to the Form in the FlexReport Quick Start project.

  2. Set the Button Name to 'crossC1Button' and Text to 'View Cross Tab-Report'.

  3. Create Click event as crossC1Button_Click.

  4. Write the following code.

    Private grp2 As Group
Private Sub crossC1Button_Click(sender As Object, e As EventArgs)
    btnEmployees.PerformClick()
    c1FlexReport1.Sections.Detail.Visible = False
    grp2 = c1FlexReport1.Groups.Add("GrpCountry", "Country", SortEnum.Ascending)
    ' format the Header section for the new group
    c1FlexReport1.Sections.PageHeader.Height = 600
    shpfld2.Top = 600
    s = grp2.SectionHeader
    s.Height = 400
    s.AutoHeight = AutoSizeBehavior.GrowAndShrink
    s.Visible = True
    textFld4.Text = "Country"
    textFld4.Width = 1000
    textFld4.Align = FieldAlignEnum.CenterMiddle
    textFld4.Height = 400
    textFld4.Font.Bold = True
    textFld4.Font.Size = 10
    textFld5.Text = "Total"
    textFld5.Width = 1000
    textFld5.Left = 1000
    textFld5.Align = FieldAlignEnum.CenterMiddle
    textFld5.Height = 400
    textFld5.Font.Bold = True
    textFld5.Font.Size = 10
    textFld6.Text = "Sales Representative"
    textFld6.Width = 2000
    textFld6.Left = 2000
    textFld6.Align = FieldAlignEnum.CenterMiddle
    textFld6.Height = 500
    textFld6.Font.Bold = True
    textFld6.Font.Size = 10
    textFld7.Text = "Vice President"
    textFld7.Width = 1500
    textFld7.Left = 4000
    textFld7.Align = FieldAlignEnum.CenterMiddle
    textFld7.Height = 400
    textFld7.Font.Bold = True
    textFld7.Font.Size = 10
    textFld8.Text = "Sales Manager"
    textFld8.Width = 1500
    textFld8.Left = 5800
    textFld8.Align = FieldAlignEnum.CenterMiddle
    textFld8.Height = 400
    textFld8.Font.Bold = True
    textFld8.Font.Size = 10
    Dim isc As New TextField()
    isc.Text = "Inside Sales Coordinator"
    isc.Width = 1500
    isc.Left = 7500
    isc.Align = FieldAlignEnum.CenterMiddle
    isc.Height = 400
    isc.Font.Bold = True
    isc.Font.Size = 10
    isc.Visible = True
    c1FlexReport1.Sections.PageHeader.Fields.Add(isc)
    Dim f1 As New Field()
    f1.Name = "Country"
    f1.Text = "Country"
    f1.Left = 80
    f1.Top = 0
    f1.Width = 1000
    f1.Height = 400
    f1.Align = FieldAlignEnum.CenterMiddle
    f1.MarginLeft = 100
    f1.Calculated = True
    f1.Visible = True
    f1.BackColor = Color.Transparent
    f1.Font.Bold = True
    f1.Font.Size = 10
    s.Fields.Add(f1)
    Dim f7 As New TextField()
    f7.Name = "RunCount"
    f7.Text = "=Count(Title)"
    f7.Left = 1080
    f7.Top = 0
    f7.Width = 1000
    f7.Height = 400
    f7.Align = FieldAlignEnum.CenterMiddle
    f7.MarginLeft = 100
    f7.Visible = True
    f7.Font.Bold = True
    f7.Font.Size = 10
    s.Fields.Add(f7)
    Dim f8 As New TextField()
    f8.Name = "SRCount"
    f8.Text = "=Count(Title, Title = ""Sales Representative"")"
    f8.Left = 2080
    f8.Top = 0
    f8.Width = 1000
    f8.Height = 400
    f8.Align = FieldAlignEnum.CenterMiddle
    f8.MarginLeft = 100
    f8.Visible = True
    f8.Font.Bold = True
    f8.Font.Size = 10
    s.Fields.Add(f8)
    Dim f9 As New TextField()
    f9.Name = "VPCount"
    f9.Text = "=Count(Title, Title = ""Vice President, Sales"")"
    f9.Left = 4000
    f9.Top = 0
    f9.Width = 1000
    f9.Height = 400
    f9.Align = FieldAlignEnum.CenterMiddle
    f9.MarginLeft = 100
    f9.Visible = True
    f9.Font.Bold = True
    f9.Font.Size = 10
    s.Fields.Add(f9)
    Dim f10 As New TextField()
    f10.Name = "SMCount"
    f10.Text = "=Count(Title, Title = ""Sales Manager"")"
    f10.Left = 5800
    f10.Top = 0
    f10.Width = 1000
    f10.Height = 400
    f10.Align = FieldAlignEnum.CenterMiddle
    f10.MarginLeft = 100
    f10.Visible = True
    f10.Font.Bold = True
    f10.Font.Size = 10
    s.Fields.Add(f10)
    Dim f11 As New TextField()
    f11.Name = "ISCCount"
    f11.Text = "=Count(Title, Title = ""Inside Sales Coordinator"")"
    f11.Left = 7500
    f11.Top = 0
    f11.Width = 1000
    f11.Height = 400
    f11.Align = FieldAlignEnum.CenterMiddle
    f11.MarginLeft = 100
    f11.Visible = True
    f11.Font.Bold = True
    f11.Font.Size = 10
    s.Fields.Add(f11)
    c1FlexReport1.Render()
End Sub
    Group grp2;
        private void crossC1Button_Click(object sender, EventArgs e)
        {
    btnEmployees.PerformClick();
    c1FlexReport1.Sections.Detail.Visible = false;
    grp2 = c1FlexReport1.Groups.Add("GrpCountry", "Country", SortEnum.Ascending);
            // format the Header section for the new group
    c1FlexReport1.Sections.PageHeader.Height = 600;
    shpfld2.Top = 600;
    s = grp2.SectionHeader;
    s.Height = 400;
    s.AutoHeight = AutoSizeBehavior.GrowAndShrink;
    s.Visible = true;
    textFld4.Text = "Country";
    textFld4.Width = 1000;
    textFld4.Align = FieldAlignEnum.CenterMiddle;
    textFld4.Height = 400;
    textFld4.Font.Bold = true;
    textFld4.Font.Size = 10;
    textFld5.Text = "Total";
    textFld5.Width = 1000;
    textFld5.Left = 1000;
    textFld5.Align = FieldAlignEnum.CenterMiddle;
    textFld5.Height = 400;
    textFld5.Font.Bold = true;
    textFld5.Font.Size = 10;
    textFld6.Text = "Sales Representative";
    textFld6.Width = 2000;
    textFld6.Left = 2000;
    textFld6.Align = FieldAlignEnum.CenterMiddle;
    textFld6.Height = 500;
    textFld6.Font.Bold = true;
    textFld6.Font.Size = 10;
    textFld7.Text = "Vice President";
    textFld7.Width = 1500;
    textFld7.Left = 4000;
    textFld7.Align = FieldAlignEnum.CenterMiddle;
    textFld7.Height = 400;
    textFld7.Font.Bold = true;
    textFld7.Font.Size = 10;
    textFld8.Text = "Sales Manager";
    textFld8.Width = 1500;
    textFld8.Left = 5800;
    textFld8.Align = FieldAlignEnum.CenterMiddle;
    textFld8.Height = 400;
    textFld8.Font.Bold = true;
    textFld8.Font.Size = 10;
    TextField isc = new TextField();
     isc.Text = "Inside Sales Coordinator";
     isc.Width = 1500;
     isc.Left = 7500;
     isc.Align = FieldAlignEnum.CenterMiddle;
     isc.Height = 400;
     isc.Font.Bold = true;
     isc.Font.Size = 10;
     isc.Visible = true;
     c1FlexReport1.Sections.PageHeader.Fields.Add(isc);
     Field f1 = new Field();
     f1.Name = "Country";
     f1.Text = "Country";
     f1.Left = 80;
     f1.Top = 0;
     f1.Width = 1000;
     f1.Height = 400;
     f1.Align = FieldAlignEnum.CenterMiddle;
     f1.MarginLeft = 100;
     f1.Calculated = true;
     f1.Visible = true;
     f1.BackColor = Color.Transparent;
     f1.Font.Bold = true;
     f1.Font.Size = 10;
     s.Fields.Add(f1);
     TextField f7 = new TextField();
     f7.Name = "RunCount";
     f7.Text = "=Count(Title)";
     f7.Left = 1080;
     f7.Top = 0;
     f7.Width = 1000;
     f7.Height = 400;
     f7.Align = FieldAlignEnum.CenterMiddle;
     f7.MarginLeft = 100;
     f7.Visible = true;
     f7.Font.Bold = true;
     f7.Font.Size = 10;
     s.Fields.Add(f7);
     TextField f8 = new TextField();
     f8.Name = "SRCount";
     f8.Text = "=Count(Title, Title = \"Sales Representative\")";
     f8.Left = 2080;
     f8.Top = 0;
     f8.Width = 1000;
     f8.Height = 400;
     f8.Align = FieldAlignEnum.CenterMiddle;
     f8.MarginLeft = 100;
     f8.Visible = true;
     f8.Font.Bold = true;
     f8.Font.Size = 10;
     s.Fields.Add(f8);
     TextField f9 = new TextField();
     f9.Name = "VPCount";
     f9.Text = "=Count(Title, Title = \"Vice President, Sales\")";
     f9.Left = 4000;
     f9.Top = 0;
     f9.Width = 1000;
     f9.Height = 400;
     f9.Align = FieldAlignEnum.CenterMiddle;
     f9.MarginLeft = 100;
     f9.Visible = true;
     f9.Font.Bold = true;
     f9.Font.Size = 10;
     s.Fields.Add(f9);
     TextField f10 = new TextField();
     f10.Name = "SMCount";
     f10.Text = "=Count(Title, Title = \"Sales Manager\")";
     f10.Left = 5800;
     f10.Top = 0;
     f10.Width = 1000;
     f10.Height = 400;
     f10.Align = FieldAlignEnum.CenterMiddle;
     f10.MarginLeft = 100;
     f10.Visible = true;
     f10.Font.Bold = true;
     f10.Font.Size = 10;
     s.Fields.Add(f10);
     TextField f11 = new TextField();
     f11.Name = "ISCCount";
     f11.Text = "=Count(Title, Title = \"Inside Sales Coordinator\")";
     f11.Left = 7500;
     f11.Top = 0;
     f11.Width = 1000;
     f11.Height = 400;
     f11.Align = FieldAlignEnum.CenterMiddle;
     f11.MarginLeft = 100;
     f11.Visible = true;
     f11.Font.Bold = true;
     f11.Font.Size = 10;
     s.Fields.Add(f11);
     c1FlexReport1.Render();
     }

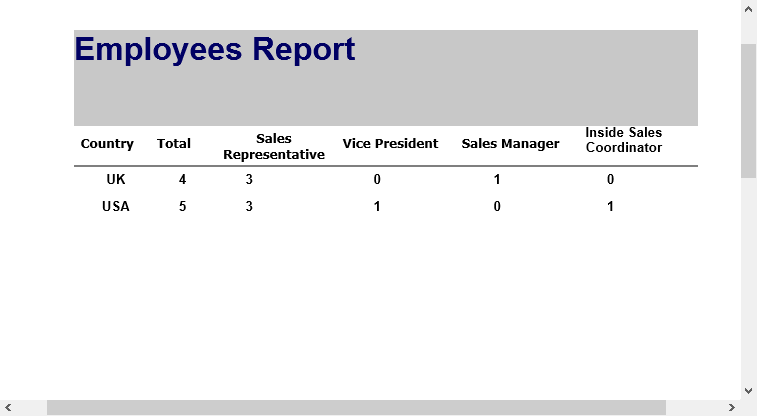

  5. Run the project. Click 'View Cross Tab-Report' button to view cross-tab report. Observe that the details corresponding to the employee titles in the two countries are shown.


    Cross-Tab Report
