Using BulletGraph with DataGridView

Consider a scenario where you have data in a tabular format and you want to visualize the same using a visual control. This walkthrough explains how this scenario can be implemented using MS DataGridView as the control for tabular representation of data and BulletGraph as the control for visual representation of the same data.

The BulletGraph control can be rendered as an image in the DataGridView cells. To learn how this can be done, follow the steps given below:

1. Create Data Source for DataGridView
2. Configure DataGridView control
3. Configure BulletGraph control
4. Rendering BulletGraph In DataGridView

type=note

Note: The BulletGraph control can also be rendered as an image in bound column of the DataGridView control using similar approach.

Step 1: Create Data Source for DataGridView

1. Create a new Windows Forms application.
2. Drag and drop the MS DataGridView control from the Toolbox onto your form. From the Properties window, set its Dock property to Fill.
3. To populate the DataGridView with data, create a data table containing relevant data.

The code below defines a method named ‘CreateDataTable’ to create a data table that contains the country-wise sales information of a company.

vbnet

Private Sub CreateDataTable()
    _dt = New DataTable()
    _dt.Columns.Add("Country", GetType(String))
    _dt.Columns.Add("Sales", GetType(Double))
    _dt.Columns.Add("Target", GetType(Double))
    _dt.Columns.Add("Bad", GetType(Double))
    _dt.Columns.Add("Good", GetType(Double))
    Dim countries As String() = {"US", "Germany", "Japan", "India", "China", "UK", "Denmark", "Indonesia"}
    Dim random As Random = New Random()
    For i As Integer = 0 To countries.Length - 1
        Dim totalSales As Integer = random.[Next](0, 500)
        Dim target As Integer = random.[Next](351, 499)
        Dim bad As Integer = random.[Next](50, 200)
        Dim good As Integer = random.[Next](201, 350)
        _dt.Rows.Add(New Object() {countries(i), totalSales, target, bad, good})
    Next
End Sub

csharp

private void CreateDataTable()
{
    _dt = new DataTable();
    _dt.Columns.Add("Country", typeof(String));
    _dt.Columns.Add("Sales", typeof(Double));
    _dt.Columns.Add("Target", typeof(Double));
    _dt.Columns.Add("Bad", typeof(Double));
    _dt.Columns.Add("Good", typeof(Double));
    string[] countries = { "US", "Germany", "Japan", "India", "China", "UK", "Denmark", "Indonesia" };
    Random random = new Random();
    for (int i = 0; i < countries.Length; i++)
    {
        int totalSales = random.Next(0, 500);
        int target = random.Next(351, 499);
        int bad = random.Next(50, 200);
        int good = random.Next(201, 350);
        _dt.Rows.Add(new object[] { countries[i], totalSales, target, bad, good });
    }
}

Note that _dt is declared as a private global variable of type DataTable.

Step 2: Configure DataGridView control

2. To bind the grid with data, assign the data table created in the previous section to the DataGridView’s DataSource property.
3. To display BulletGraph in DataGridView cells, add an additional unbound DataGridViewImageColumn to the DataGridView control.
4. Optionally, customize the DataGridView’s appearance using appropriate properties of the DataGridView control.
5. To render the BulletGraph control as an image in the added unbound column ‘SalesV/STarget’ of the DataGridView, subscribe to the CellPainting event of the DataGridView class.

The code below creates a method named ‘SetUpGrid’, to configure the above mentioned settings of the DataGridView control.

vbnet

Private Sub SetUpGrid()
    DataGridView1.DataSource = _dt
    'Add an unbound DataGridViewImageColumn to the DataGridView. This column will be used to show the BulletGraph control as an image
    Dim dataGridViewImageColumn As DataGridViewImageColumn = New DataGridViewImageColumn()
    dataGridViewImageColumn.Name = "SalesV/STarget"
    DataGridView1.Columns.Add(dataGridViewImageColumn)
    'Set additional properties of the DataGridView (optional)
    DataGridView1.ColumnHeadersDefaultCellStyle.Font = New Font(FontFamily.GenericSansSerif, 8.5F, FontStyle.Bold)
    DataGridView1.Font = New Font(FontFamily.GenericSansSerif, 9.0F, FontStyle.Regular)
    DataGridView1.Columns(DataGridView1.Columns.Count - 1).AutoSizeMode = DataGridViewAutoSizeColumnMode.Fill
    For i As Integer = 0 To DataGridView1.Rows.Count - 1
        DataGridView1.Rows(i).Height = 40
    Next
    DataGridView1.RowHeadersVisible = False
    DataGridView1.AllowUserToAddRows = False
    DataGridView1.DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter
    DataGridView1.DefaultCellStyle.Format = "$ #,##0"
    DataGridView1.ColumnHeadersDefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter
    DataGridView1.Columns("Sales").HeaderText = "Sales" & vbLf & "(millions)"
    DataGridView1.Columns("Target").HeaderText = "Target" & vbLf & "(millions)"
    DataGridView1.Columns("Bad").HeaderText = "Bad" & vbLf & "(millions)"
    DataGridView1.Columns("Good").HeaderText = "Good" & vbLf & "(millions)"
    'Subscribe to the DataGridView's CellPainting event
    AddHandler DataGridView1.CellPainting, AddressOf DataGridView1_CellPainting
End Sub

csharp

private void SetUpGrid()
{
    dataGridView1.DataSource = _dt;
    //Add an unbound DataGridViewImageColumn to the DataGridView. This column will be used to show the BulletGraph control as an image
    DataGridViewImageColumn dataGridViewImageColumn = new DataGridViewImageColumn();
    dataGridViewImageColumn.Name = "SalesV/STarget";
    dataGridView1.Columns.Add(dataGridViewImageColumn);
    //Set additional properties of the DataGridView (optional)
    dataGridView1.ColumnHeadersDefaultCellStyle.Font= new Font(FontFamily.GenericSansSerif, 8.5f, FontStyle.Bold);
    dataGridView1.Font = new Font(FontFamily.GenericSansSerif, 9f, FontStyle.Regular);
    dataGridView1.Columns[dataGridView1.Columns.Count - 1].AutoSizeMode = DataGridViewAutoSizeColumnMode.Fill;
    for (int i = 0; i < dataGridView1.Rows.Count; i++)
    {
        dataGridView1.Rows[i].Height = 40;
    }
    dataGridView1.RowHeadersVisible = false;
    dataGridView1.AllowUserToAddRows = false;
    dataGridView1.DefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter;
    dataGridView1.DefaultCellStyle.Format = "$ #,##0";
    dataGridView1.ColumnHeadersDefaultCellStyle.Alignment = DataGridViewContentAlignment.MiddleCenter;
    dataGridView1.Columns["Sales"].HeaderText = "Sales\n(millions)";
    dataGridView1.Columns["Target"].HeaderText = "Target\n(millions)";
    dataGridView1.Columns["Bad"].HeaderText = "Bad\n(millions)";
    dataGridView1.Columns["Good"].HeaderText = "Good\n(millions)";
    //Subscribe to the DataGridView's CellPainting event
    dataGridView1.CellPainting += DataGridView1_CellPainting;
}

Step 3: Configure BulletGraph control

1. Now create a global instance of the BulletGraph control and configure the general settings of the control. These settings will be applied to all the bullet graphs, which will be rendered in the DataGridView cells.
   Note that although we need to display the BulletGraph in each row of the unbound column, we require only one instance of the BulletGraph control. This is because as we have already rendered the BulletGraph control’s image in the appropriate row, the same BulletGraph instance can be reconfigured to obtain the image for other bullet graphs.

   The code given below defines a method named ‘ConfigureBulletGraph’ to instantiate the BulletGraph control and specify its general properties:

   vbnet

   Private Sub ConfigureBulletGraph()
       'Configure the BulletGraph control
       _bulletGraph = New C1BulletGraph()
       _bulletGraph.Minimum = 0 'Sets the starting value of the quantitative scale
       _bulletGraph.Maximum = 500 'Sets the ending value of the quantitative scale
       _bulletGraph.GraphScale.ShowLabels = False 'Hides the scale labels
       _bulletGraph.GraphScale.ShowMarks = False 'Hides the scale tick marks

       'Styling the BulletGraph control
       _bulletGraph.BackColor = Color.White
       _bulletGraph.Styles.Ranges.Value.Color = Color.SteelBlue
       _bulletGraph.Styles.Ranges.Bar.Border.Color = Color.Gray
       _bulletGraph.Styles.Ranges.Bar.Border.LineStyle = C1GaugeBorderStyle.Solid
   End Sub


   csharp

   private void ConfigureBulletGraph()
   {
       //Configure the BulletGraph control
       _bulletGraph = new C1BulletGraph();
       _bulletGraph.Minimum = 0; //Sets the starting value of the quantitative scale
       _bulletGraph.Maximum = 500; //Sets the ending value of the quantitative scale
       _bulletGraph.GraphScale.ShowLabels = false; //Hides the scale labels
       _bulletGraph.GraphScale.ShowMarks = false; //Hides the scale tick marks

       //Styling the BulletGraph control
       _bulletGraph.BackColor = Color.White;
       _bulletGraph.Styles.Ranges.Value.Color = Color.SteelBlue;
       _bulletGraph.Styles.Ranges.Bar.Border.Color = Color.Gray;
       _bulletGraph.Styles.Ranges.Bar.Border.LineStyle = C1GaugeBorderStyle.Solid;
   }


   type=note

   Note:The _bulletGraph is declared as a private global variable of type C1BulletGraph.

Step 4: Rendering BulletGraph In DataGridView

• To render the BulletGraph control as an image in the ‘SalesV/STarget’ column of the DataGridView, use the DataGridView’s CellPainting event. In the CellPainting event handler, specify the values for the comparative measure, featured measure and qualitative ranges of the BulletGraph that needs to be drawn. We are setting these values in this event because for each bullet graph that is drawn in a specific row of the unbound column, these values will be different.2. Once the BulletGraph is fully configured, retrieve an image of the BulletGraph control with the help of the GetImage method of C1BulletGraph class.

3. Draw the retrieved image in the DataGridView’s cell using the DrawImage method of Graphics class as shown:
   vbnet

   Private Sub DataGridView1_CellPainting(ByVal sender As Object, ByVal e As DataGridViewCellPaintingEventArgs)
       If e.RowIndex >= 0 AndAlso DataGridView1.Columns(e.ColumnIndex).Name = "SalesV/STarget" Then
           _bulletGraph.Bounds = e.CellBounds
           _bulletGraph.Value = CDbl(_dt.Rows(e.RowIndex)("Sales")) 'Sets the value of the featured measure
           _bulletGraph.Target = CDbl(_dt.Rows(e.RowIndex)("Target")) 'Sets the value of the comparative measure
           _bulletGraph.Bad.To = CDbl(_dt.Rows(e.RowIndex)("Bad")) 'Sets the ending value of the good range
           _bulletGraph.Good.To = CDbl(_dt.Rows(e.RowIndex)("Good")) 'Sets the ending value of the bad range

           'Retrieve the BulletGraph image and draw the retrieved image in the DataGridView's cell
           Dim bulletGraphImg As Image = _bulletGraph.GetImage()
           e.Graphics.DrawImage(bulletGraphImg, e.CellBounds)
           e.Paint(e.CellBounds, DataGridViewPaintParts.Border)
           e.Handled = True
       End If
   End Sub


   csharp

   private void DataGridView1_CellPainting(object sender, DataGridViewCellPaintingEventArgs e)
   {
       if (e.RowIndex >= 0 && dataGridView1.Columns[e.ColumnIndex].Name == "SalesV/STarget")
       {
           _bulletGraph.Bounds = e.CellBounds;
           _bulletGraph.Value = (double)_dt.Rows[e.RowIndex]["Sales"]; //Sets the value of the featured measure
           _bulletGraph.Target = (double)_dt.Rows[e.RowIndex]["Target"]; //Sets the value of the comparative measure
           _bulletGraph.Bad.To = (double)_dt.Rows[e.RowIndex]["Bad"]; //Sets the ending value of the good range
           _bulletGraph.Good.To = (double)_dt.Rows[e.RowIndex]["Good"]; //Sets the ending value of the bad range

           //Retrieve the BulletGraph image and draw the retrieved image in the DataGridView's cell
           Image bulletGraphImg = _bulletGraph.GetImage();
           e.Graphics.DrawImage(bulletGraphImg, e.CellBounds);
           e.Paint(e.CellBounds,DataGridViewPaintParts.Border);
           e.Handled = true;
       }
   }


4. Call the CreateDataTable, SetUpGrid and ConfigureBulletGraph methods in the Form1_Load event handler.
   vbnet

   Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
       'Creates DataTable which will be used as the DataSource for the DataGridView
       CreateDataTable()
       'Adds an unbound column to the DataGridView and sets the DataGridView properties
       SetUpGrid()
       'Sets the common properties of the BulletGraph control
       ConfigureBulletGraph()
   End Sub


   csharp

   private void Form1_Load(object sender, EventArgs e)
   {
       //Creates DataTable which will be used as the DataSource for the DataGridView
       CreateDataTable();
       //Adds an unbound column to the DataGridView and sets the DataGridView properties
       SetUpGrid();
       //Sets the common properties of the BulletGraph control
       ConfigureBulletGraph();
   }

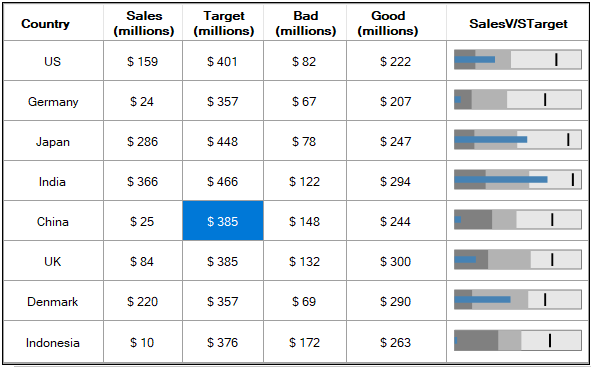

5. Run the application. Observe how the bullet graphs are getting displayed in the ’SalesV/STarget’ column of the DataGridView control.
