Spread for WinForms Installation

Notes for Users of Previous Versions

• If you are upgrading from previous versions of Spread for WinForms, you have the choice of installing parallel versions of the product.

  • If you want to have parallel installations of Spread for WinForms on your system, follow the installation instructions below.

  • If you do not want to have parallel installations, before installing this latest version of the product, run the uninstall program for your previous versions of the product, then run the installation for this version of the product.

• For instructions for upgrading your existing projects, see Upgrading Visual Studio .NET Projects.

Install Instructions

To install Spread for WinForms,

1. Run the Spread.NET Installer.exe program.

2. Select Options.

3. Accept or change the installation location in the General tab.

4. Close the Options dialog.

5. Read and accept the End User License Agreement.

6. Select the components to install and then select Install.

Offline Install Instructions

To install Spread for WinForms in offline mode,

1. Save the downloaded ZIP file to a temporary directory on your system, and then unzip the files to C:\Users\your user name\AppData\Local\GcInstaller\Offline.

2. Run GcInstaller.exe.

3. Select Options.

4. If Offline is not selected by default, select the Mode tab and change the mode to Offline.

5. Accept or change the installation location in the General tab.

6. Close the Options dialog.

7. Read and accept the End User License Agreement.

8. Select the components to install and then select Install.

Install SA3 Client

SA3 provides new client tools to manage licenses for components products. Starting from v19.0, Spread Windows Forms will use the SA3 Client Tool to activate or deactivate the product.

Installation via Installer

The .NET Framework edition of the SA3 Client tool will be automatically installed to %ProgramData%\SA3\Desktop along with the Spread.NET installer.

Installation via NuGet.org

The .NET edition of the SA3 Client tool will be automatically installed to %ProgramData%\SA3 along with the Spread.NET NuGet package.

You can run sa3client --help to view the general help, or sa3client <command> --help to get help for specific commands.

Online Activation

Using MESCIUS License Manager

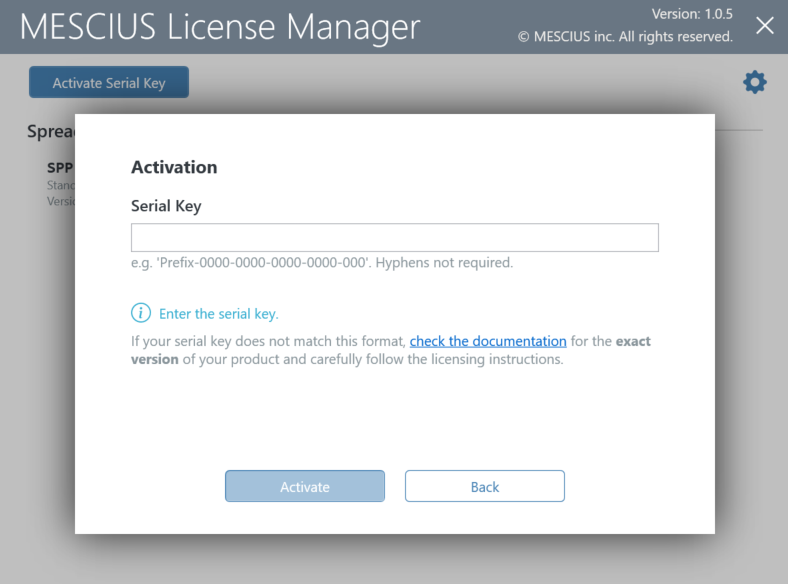

1. After installation, navigate to C:\ProgramData\SA3\Desktop on your machine, double click sa3client-ui.exe, and click Activate Serial Key.













2. Enter the license key and click Activate.







3. Click OK.







4. Use MESCIUS License Manager to deactivate the license before moving the license to another machine. Click sa3client-ui.exe located in C:\ProgramData\SA3\Desktop and click Deactivate.







Using Visual Studio

If you are trying to activate the product package installed from the NuGet Package Manager in Visual Studio, follow the steps mentioned below:

1. Create a project in Visual Studio.

2. Open NuGet Package Manager and install the product package from nuget.org.

3. Build the project in Visual Studio. You will see a popup window during build.

4. Click on Run the License Manager in the popup window to launch the License Manager app.













5. Click the Activate Serial Key for the product in the window, and enter your serial key.

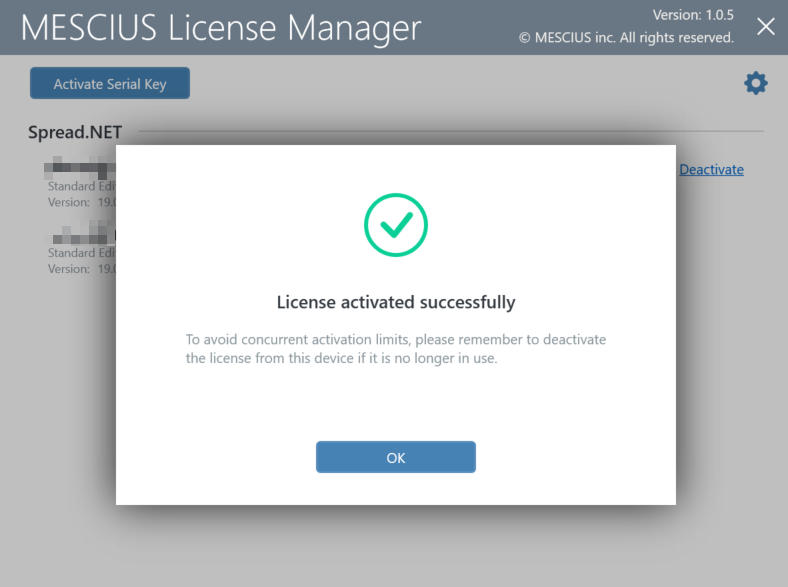

6. After clicking the Activate button, License Manager App will connect to our website. If successful, you will see the result:













7. After closing the License Manager window, Visual Studio will continue the build.

Using Command Line Interface

You can activate the product using the command line interface if the graphics UI of the License Manager does not work normally. This is useful, especially for a build machine.

1. After installation, open the command prompt.

2. Use the following commands to activate, deactivate, or refresh the license.

The following command line options are available for MESCIUS License Manager:

Offline Activation

Suppose the target machine cannot access the internet, but there is another machine that can access the SA3 website via web browser. In that case, you can activate a normal developer license in offline mode.

Using MESCIUS License Manager

1. Run the sa3client-ui.exe from C:\ProgramData\SA3\Desktop and try to activate a serial key without network access. Our tool will display the following error on the window.

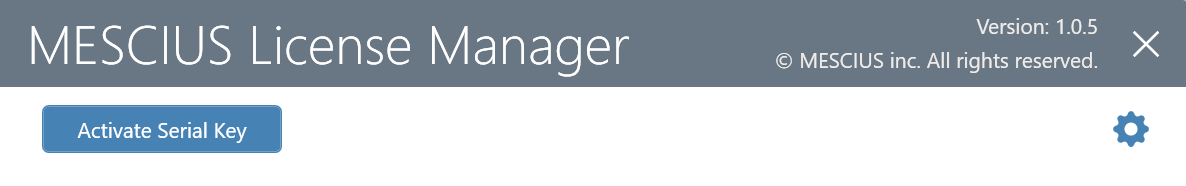

2. Click the  icon at the top right to open the Settings page, and set the connection mode to Offline, then click Back.







3. Click the Activate Serial Key button and enter your serial key. An Offline Activation Request dialog will appear, save the content to a local file.







4. Copy the Offline Activation File to another machine which could access the SA3 website.

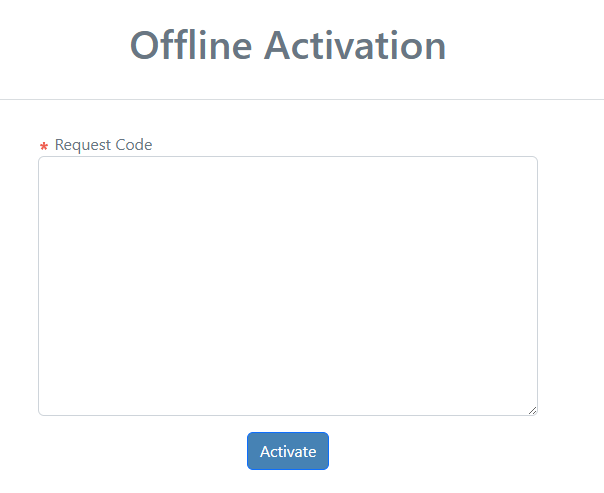

5. On that machine, access SA3 website and click Activate.







6. Paste the Request Code and click Activate button to generate the license data.







7. Save the license data and copy it back to the original machine.

8. In the License Manager, click Import Offline License, paste the license data, and click Activate. The License is activated.













Using Command Line Interface

1. Open the command prompt.

2. Use the following commands to activate or deactivate the license.

The following command line options are available for MESCIUS License Manager:

Adding the Component to the Toolbox

If the Spread component is not displayed in the Toolbox, follow the procedure for Adding the Component to the Toolbox.
