Accessibility Support

SpreadJS provides optional accessibility support for users who rely on screen-reading applications such as Windows Narrator, NVDA (NonVisual Desktop Access), and VoiceOver for macOS.

Behavior may vary depending on the screen reader and browser combination used.

Enabling or Disabling Accessibility

Accessibility is disabled by default.

If accessibility is not enabled, screen readers will not announce SpreadJS content.

To enable accessibility support, set:

spread.options.enableAccessibility = true;

Screen Reader Behavior

The following cases were observed during internal testing and illustrate how different user interactions and UI areas are announced by screen readers.

These examples are provided for reference.

Actual behavior may vary depending on the screen reader and browser combination.

Cases

Texts Read by the Screen Reader

The cell (0, 1) becomes the active cell by pressing the Tab key, and its value is "name".

Cell(0, 1) has value "name"

The mouse enters cell (0, 1) in the viewport area, and its value is "name".

Cell(0, 1) has value "name"

The mouse enters cell (0, 1) in the column header area, and its value is "name".

Column header Cell(0, 1) has value "name"

The mouse enters cell (1, 0) in the row header area, and its value is "name".

Row header Cell(1, 0) has value "name"

The mouse enters the resize bar of the tab strip.

Resize

The mouse enters the first area of the tab strip.

First

The mouse enters the previous arrow area of the tab strip.

Previous arrow

The mouse enters the next arrow area of the tab strip.

Next arrow

The mouse enters the last area of the tab strip.

Last

The mouse enters the previous button area of the tab strip.

Previous button

The mouse enters the next button area of the tab strip.

Next button

The mouse enters the sheet tab area of the tab strip, and its name is "Sheet1".

Sheet tab "Sheet1"

The mouse enters the new sheet area of the tab strip.

New sheet

The mouse enters the blank area of the tab strip.

Blank

The mouse enters the left button area of the horizontal scrollbar.

Scrollbar left button

The mouse enters the top button area of the vertical scrollbar.

Scrollbar top button

The mouse enters the thumb button area of the scrollbar.

Scrollbar thumb button

The mouse enters the right button area of the horizontal scrollbar.

Scrollbar right button

The mouse enters the bottom button area of the vertical scrollbar.

Scrollbar bottom button

The page containing SpreadJS is the active browser tab, and the active cell is cell (0, 1) with value "name".

Cell(0, 1) has value "name"

Customizing Accessible Output

SpreadJS provides alternative text support at different levels. These mechanisms are independent.

Cell Alternative Text

Cell alternative text customizes how a cell is announced by screen readers.

It does not affect sorting, filtering, formulas, or search.

You can set or get cell alternative text using:

Example:

activeSheet.getCell(0, 0).altText("Set alternative text for the cell");
console.log(activeSheet.getCell(0, 0).altText());

SpreadJS supports serialization and deserialization of cell alternative text in .ssjson and .sjs formats.

Using the StorageType.altText enumeration, you can clear alternative text:

activeSheet.clear(0, 0, 3, 3,
    GC.Spread.Sheets.SheetArea.viewport,
    GC.Spread.Sheets.StorageType.altText);

You can also copy alternative text using CopyToOptions.altText.

Limitation: Row, column, and worksheet levels do not support alternative text.

Alternative Text for Pictures, Shapes, and Charts

For graphical objects such as pictures, charts, shapes, and connectors, alternative text can be set using the alt() method.

Example:

picture.alt("This is a mango image");
chart.alt("This is a column chart");
shape.alt("This is a cloud shape");

This alternative text is used for accessibility support.

Designer Support

SpreadJS Designer also supports accessibility.

To enable accessibility in the Designer:

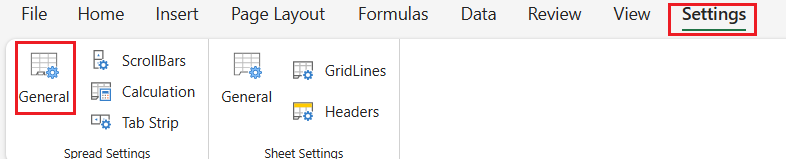

  1. Go to Settings → Genera → Spread Settings

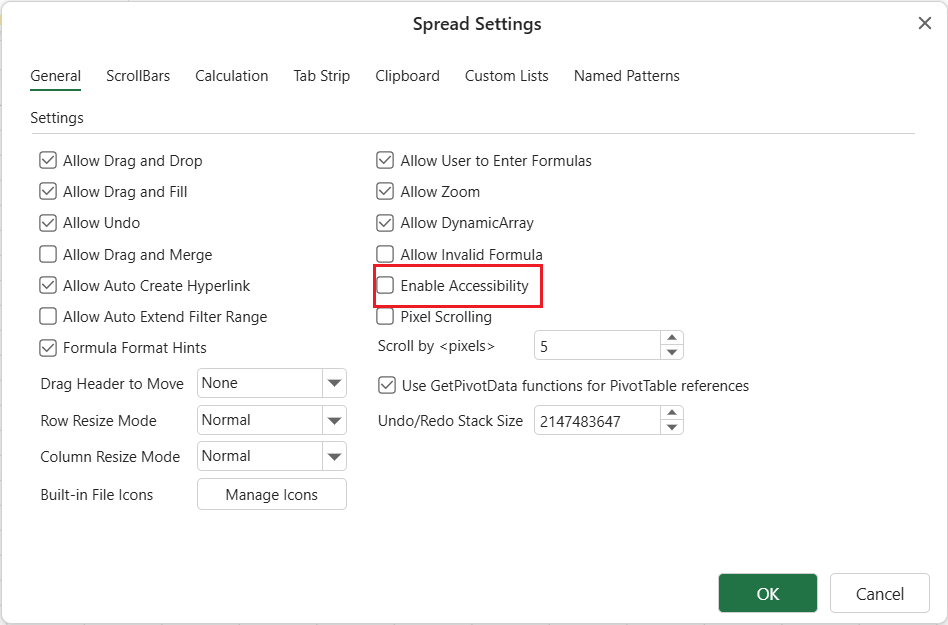

  2. Select Enable Accessibility

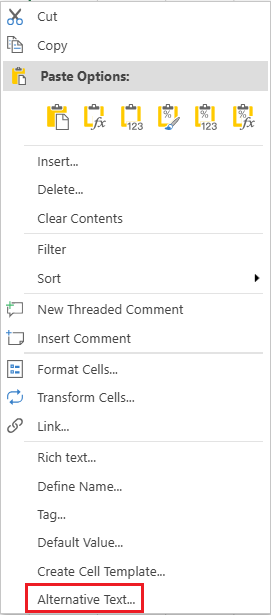

    Cell alternative text can be viewed or modified using the Alternative Text… option in the cell context menu (when accessibility is enabled).


Compatibility and Limitations (Reference)

Screen Reader Compatibility Matrix

Screen Reader

Browser

Tab Key

Mouse Hover

Active Tab

NVDA (Windows)

Chrome

Supported

Supported

Supported

NVDA (Windows)

Firefox

Supported

Supported

Not supported

NVDA (Windows)

Chromium Edge

Supported

Supported

Not supported

NVDA (Windows)

Edge

Not supported

Not supported

Not supported

NVDA (Windows)

IE

Not supported

Not supported

Not supported

Windows Narrator

Chrome

Supported

Supported

Not supported

Windows Narrator

Firefox

Supported

Supported

Not supported

Windows Narrator

Chromium Edge

Supported

Supported

Not supported

Windows Narrator

Edge

Supported

Not supported

Not supported

Windows Narrator

IE

Supported

Not supported

Not supported

VoiceOver (macOS)

Chrome

Supported with limitations

Supported with limitations

Not supported

VoiceOver (macOS)

Safari

Supported with limitations

Supported with limitations

Not supported

VoiceOver Limitations

  • VoiceOver ignores the aria-label attribute when a div element contains content.

  • VoiceOver does not recognize dynamically updated aria-label attributes.

  • VoiceOver does not recognize tab strips, scrollbars, or graphical objects such as pictures, charts, and shapes.

Additional Notes

  • Behavior may vary depending on the screen reader and browser.

  • Mouse- or touch-based UI operations (such as drag fill and filtering) may be difficult to use with screen readers.

  • Accessibility support provides basic functionality.
