Pie Charts

Pie charts, the most common tools used for data visualization, are circular graphs that display the proportionate contribution of each category which is represented by a pie or a slice. The magnitude of the dependent variable is proportional to the angle of the slice. These charts can be used for plotting just one series with non-zero and positive values.

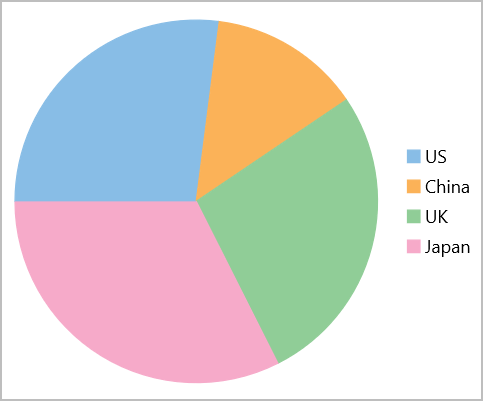

Create a Pie Chart

Pie chart is represented by the FlexPie class in FlexChart. To create a Pie chart through code, follow these steps:

1. In XAML, initialize the FlexPie control and configure the X and Y axes by setting the BindingName and Binding properties, respectively. Then set up the data source through the ItemsSource property., as showcased in the following code:

   <c1:FlexPie x:Name="chart" ItemsSource="{Binding Data}" Binding="Q1"
             BindingName="Country" Margin="10">
   </c1:FlexPie>





2. Switch to C# and use the following code to create the data source for the chart.

   public class DataItem
   {
       public string Country { get; set; }
       public double Q1 { get; set; }
       public double Q2 { get; set; }
       public double Q3 { get; set; }
       public double Q4 { get; set; }
   }
   List<DataItem> data = CreateData();
   public List<DataItem> Data => data;
   public static List<DataItem> CreateData()
   {
       var countries = new string[] { "US", "China", "UK", "Japan" };
       var count = countries.Length;
       var result = new List<DataItem>();
       var rnd = new Random();
       for (var i = 0; i < count; i++)
           result.Add(new DataItem()
           {
               Country = countries[i],
               Q1 = rnd.Next(20),
               Q2 = rnd.Next(20),
               Q3 = rnd.Next(20),
               Q4 = rnd.Next(20)
           });
       return result;
   }
