Setting the Cell Types of the Register

To set cell types, for each custom cell type, you have to create a cell type object, set the properties for it, and then assign that object to the CellType property for a cell or range of cells.

1. Set the cell type for the Check # column by adding the following code below the code you have already added:

   // Create Check # column of integer cells.
   FarPoint.Web.Spread.IntegerCellType objIntCell = new FarPoint.Web.Spread.IntegerCellType();
   FpSpread1.Sheets[0].Columns[0].CellType = objIntCell;


   ' Create Check # column of integer cells.
   Dim objIntCell As New FarPoint.Web.Spread.IntegerCellType()
   FpSpread1.Sheets(0).Columns(0).CellType = objIntCell


2. Set the cell type for the Date column by adding the following code below the code you have already added:

   // Create Date column of date-time cells.
   FarPoint.Web.Spread.DateTimeCellType objDateCell = new FarPoint.Web.Spread.DateTimeCellType();
   objDateCell.FormatString = "M/dd/yyyy";
   FpSpread1.Sheets[0].Columns[1].CellType = objDateCell;


   ' Create Date column of date-time cells.
   Dim objDateCell As New FarPoint.Web.Spread.DateTimeCellType()
   objDateCell.FormatString ="M/dd/yyyy"
   FpSpread1.Sheets(0).Columns(1).CellType = objDateCell


3. Set the cell type for the Description column by adding the following code below the code you have already added:

   // Create Description column of general cells.
   FarPoint.Web.Spread.GeneralCellType objGenCell = new FarPoint.Web.Spread.GeneralCellType();
   FpSpread1.Sheets[0].Columns[2].CellType = objGenCell;


   ' Create Description column of general cells.
   Dim objGenCell As New FarPoint.Web.Spread.GeneralCellType()
   FpSpread1.Sheets(0).Columns(2).CellType = objGenCell


4. Set the cell type for the Tax? and Cleared? columns by adding the following code below the code you have already added:

   /// Create Tax? and Cleared? columns of check box cells.
   FarPoint.Web.Spread.CheckBoxCellType objCheckCell = new FarPoint.Web.Spread.CheckBoxCellType();
   FpSpread1.Sheets[0].Columns[3].CellType = objCheckCell;
   FpSpread1.Sheets[0].Columns[4].CellType = objCheckCell;


   ' Create Tax? and Cleared? columns of check box cells.
   Dim objCheckCell As New FarPoint.Web.Spread.CheckBoxCellType()
   FpSpread1.Sheets(0).Columns(3).CellType = objCheckCell
   FpSpread1.Sheets(0).Columns(4).CellType = objCheckCell


5. Set the cell type for the Debit, Credit, and Balance columns by adding the following code below the code you have already added:

   // Create the Debit, Credit, and Balance columns of currency cells.
   FarPoint.Web.Spread.CurrencyCellType objCurrCell = new FarPoint.Web.Spread.CurrencyCellType();
   FpSpread1.Sheets[0].Columns[5].CellType = objCurrCell;
   FpSpread1.Sheets[0].Columns[6].CellType = objCurrCell;
   FpSpread1.Sheets[0].Columns[7].CellType = objCurrCell;


   ' Create the Debit, Credit, and Balance columns of currency cells.
   Dim objCurrCell As New FarPoint.Web.Spread.CurrencyCellType()
   FpSpread1.Sheets(0).Columns(5).CellType = objCurrCell
   FpSpread1.Sheets(0).Columns(6).CellType = objCurrCell
   FpSpread1.Sheets(0).Columns(7).CellType = objCurrCell


6. Save your project, then from the Debug menu choose Start to run your project.

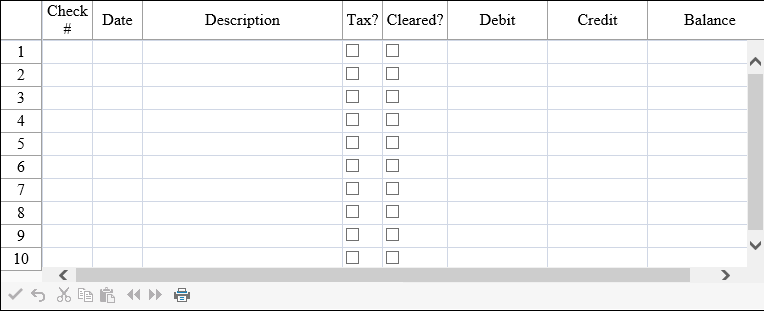

Your ASP.NET page should look similar to the following picture.
